A/C Heater Control Connector End View (C3)

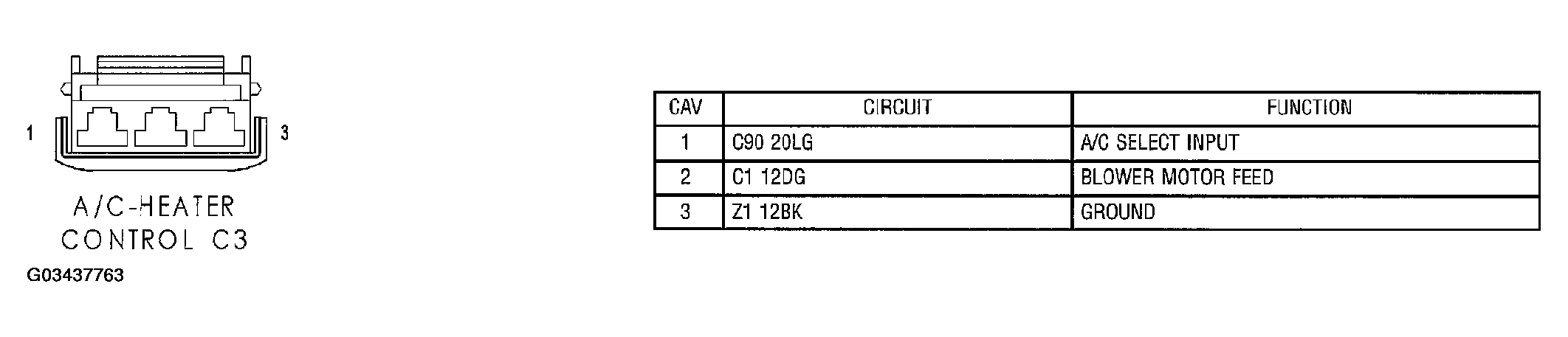

Fig 1: A/C Heater Control Connector End View (C3)

G03437763

Courtesy of DAIMLERCHRYSLER CORP.
