A/C Compressor Clutch Connector End View

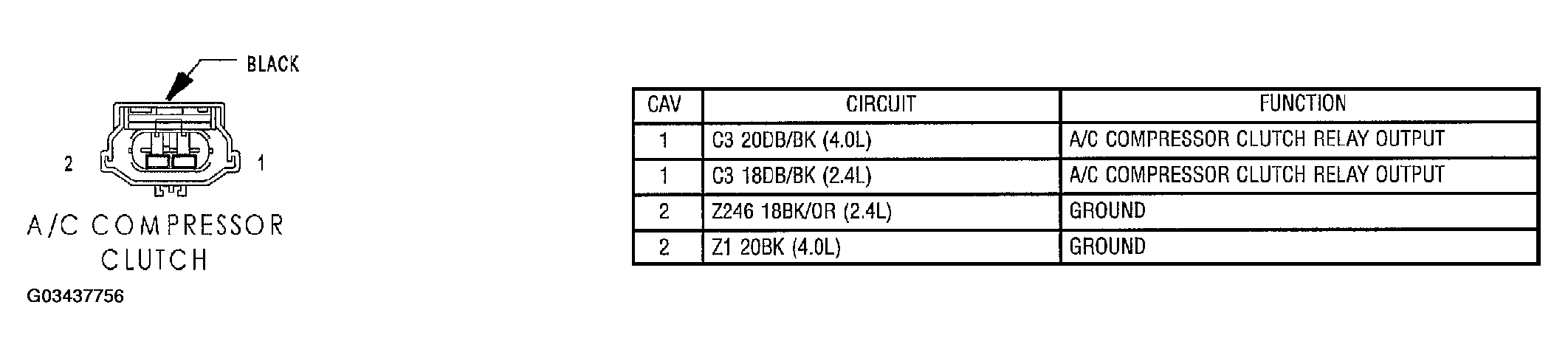

Fig 1: A/C Compressor Clutch Connector End View

G03437756

Courtesy of DAIMLERCHRYSLER CORP.
