Crankshaft Position Sensor Harness Connector End View (2.4L/4.0L A/T)

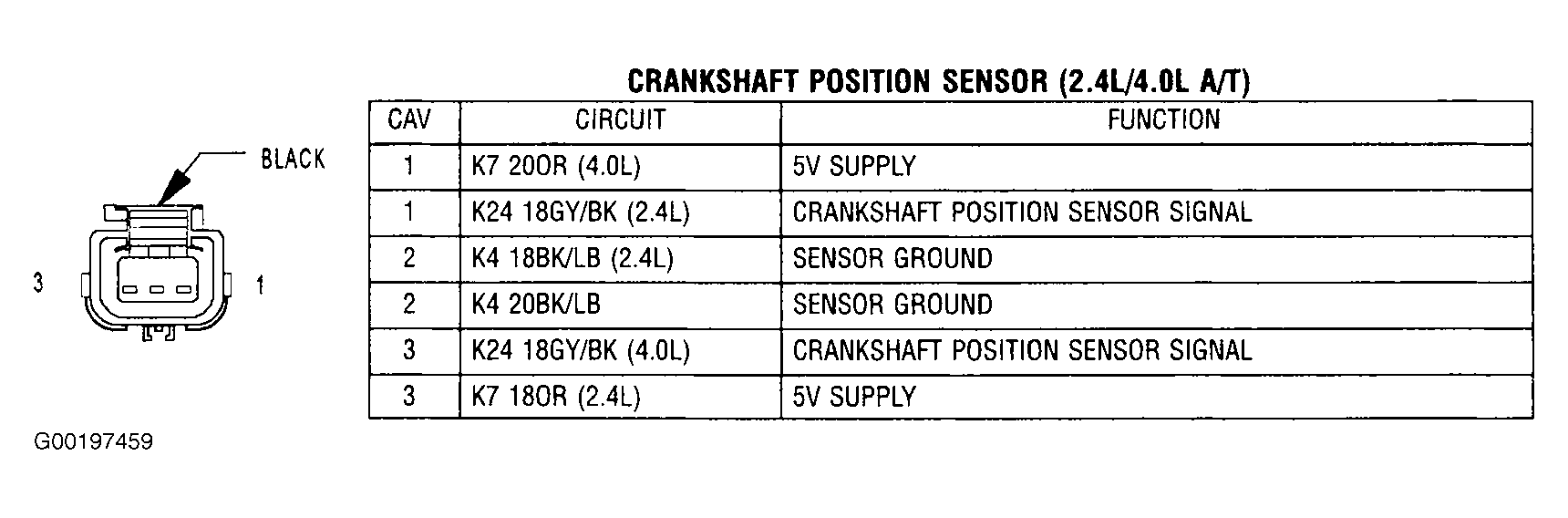

Fig 1: Identifying Crankshaft Position Sensor Harness Connector (2.4L/4.0L A/T)

G00197459

Courtesy of CHRYSLER CORP.
