Overhead Map/Reading Lamp (Except Base) Connector End View

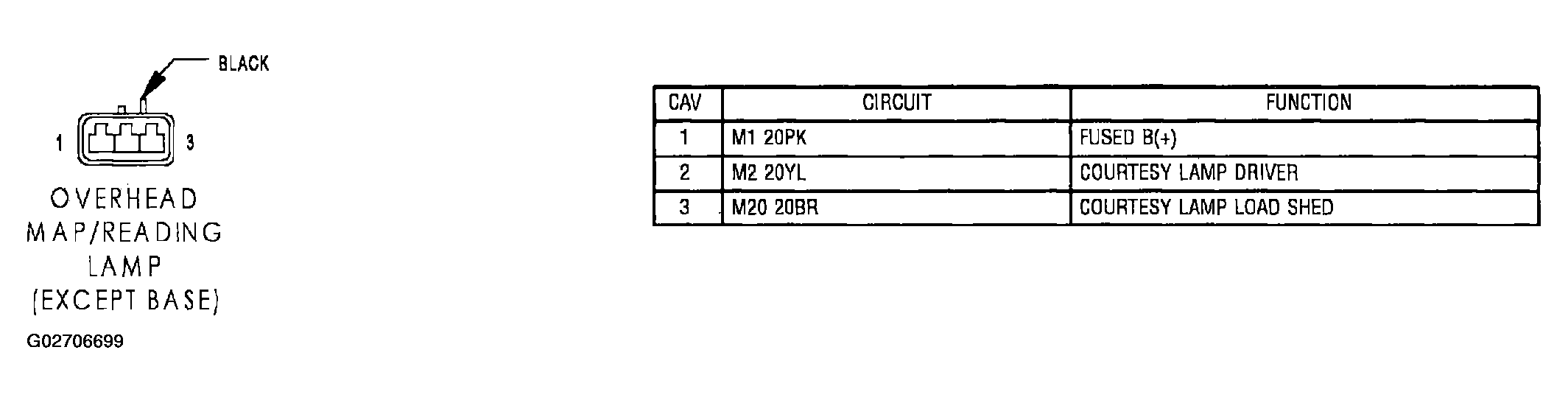

Fig 1: Overhead Map/Reading Lamp (Except Base) Connector End View

G02706699

Courtesy of DAIMLERCHRYSLER CORP.
