ORC Airbag Control Module Connector End View (C1)

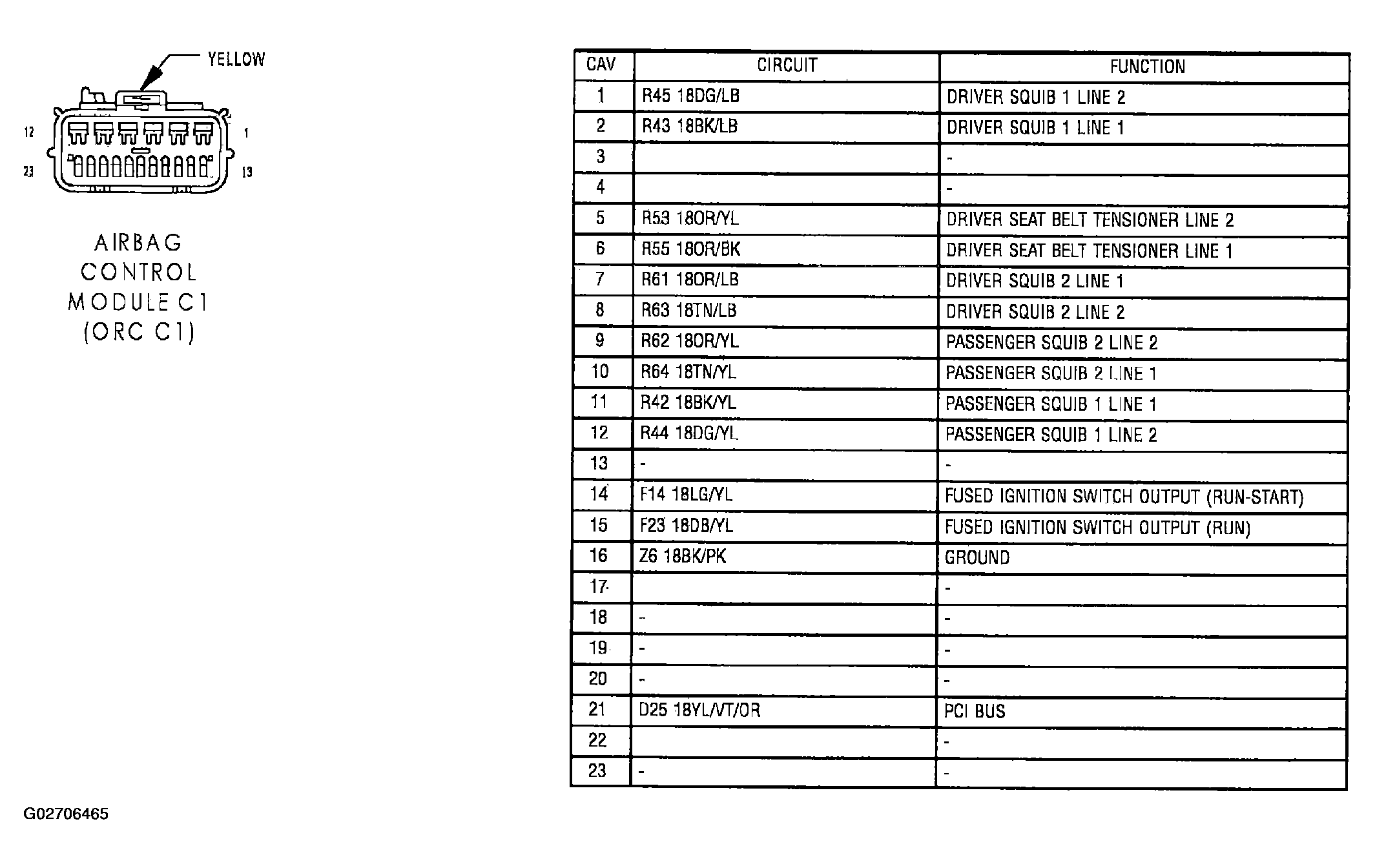

Fig 1: ORC Airbag Control Module Connector End View (C1)

G02706465

Courtesy of DAIMLERCHRYSLER CORP.
