Ignition Switch Connector End View

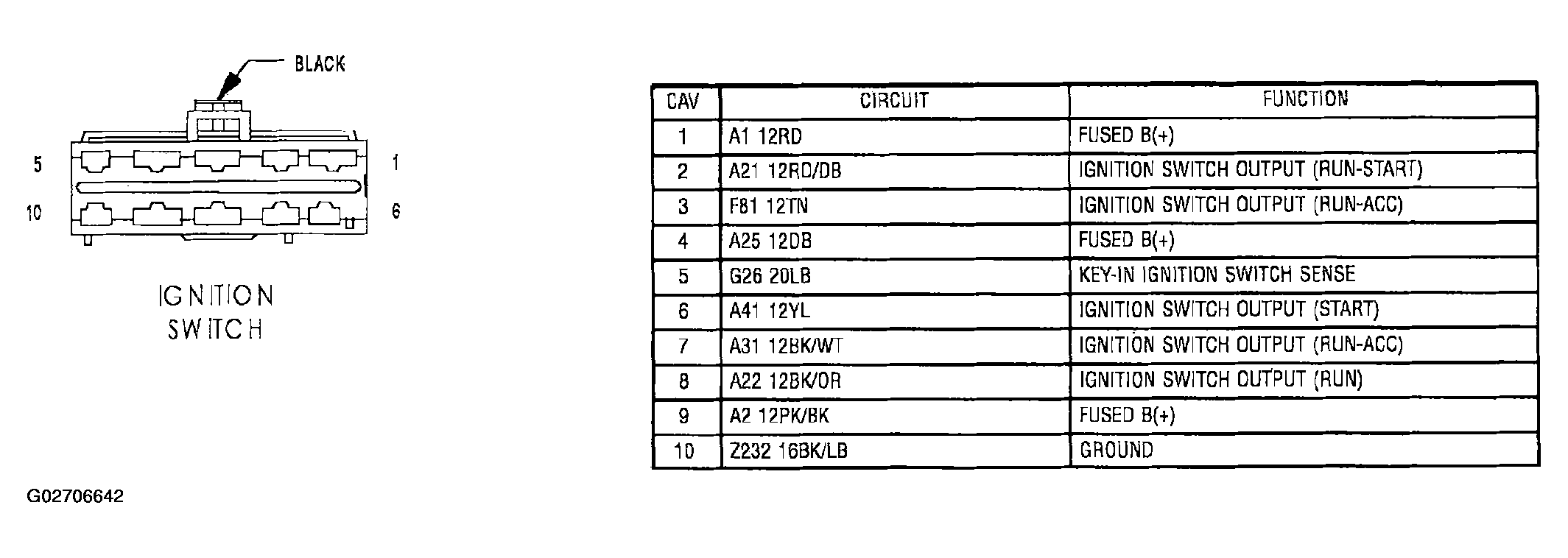

Fig 1: Ignition Switch Connector End View
G02706642Courtesy of DAIMLERCHRYSLER CORP.
