Compass Mini Trip Computer (Premium) Connector End View

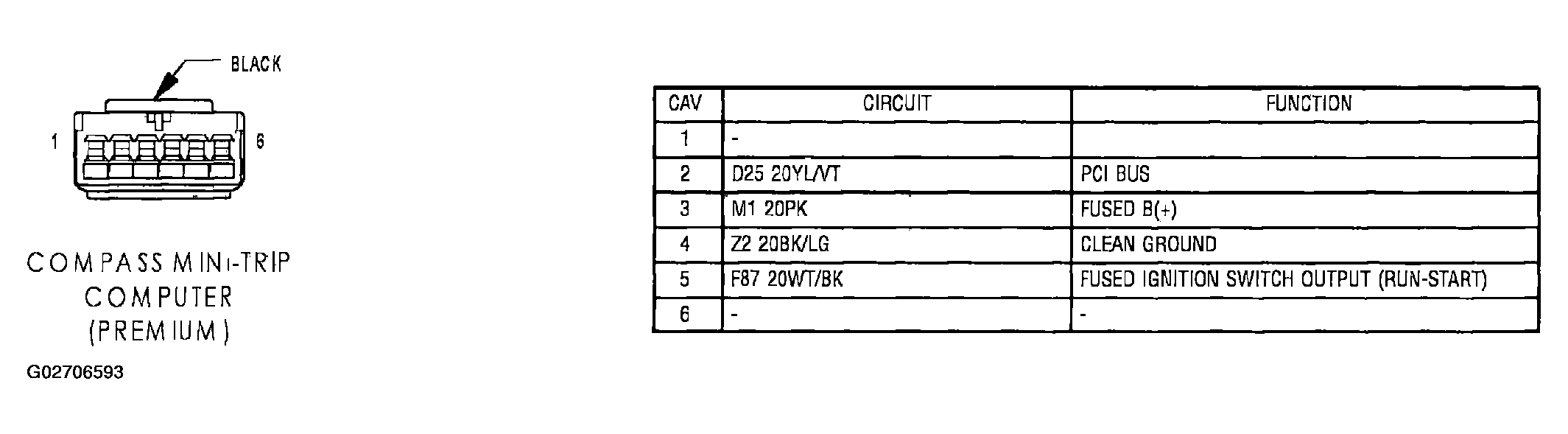

Fig 1: Compass Mini Trip Computer (Premium) Connector End View

G02706593

Courtesy of DAIMLERCHRYSLER CORP.
