Antilock Brake Controller Connector End View

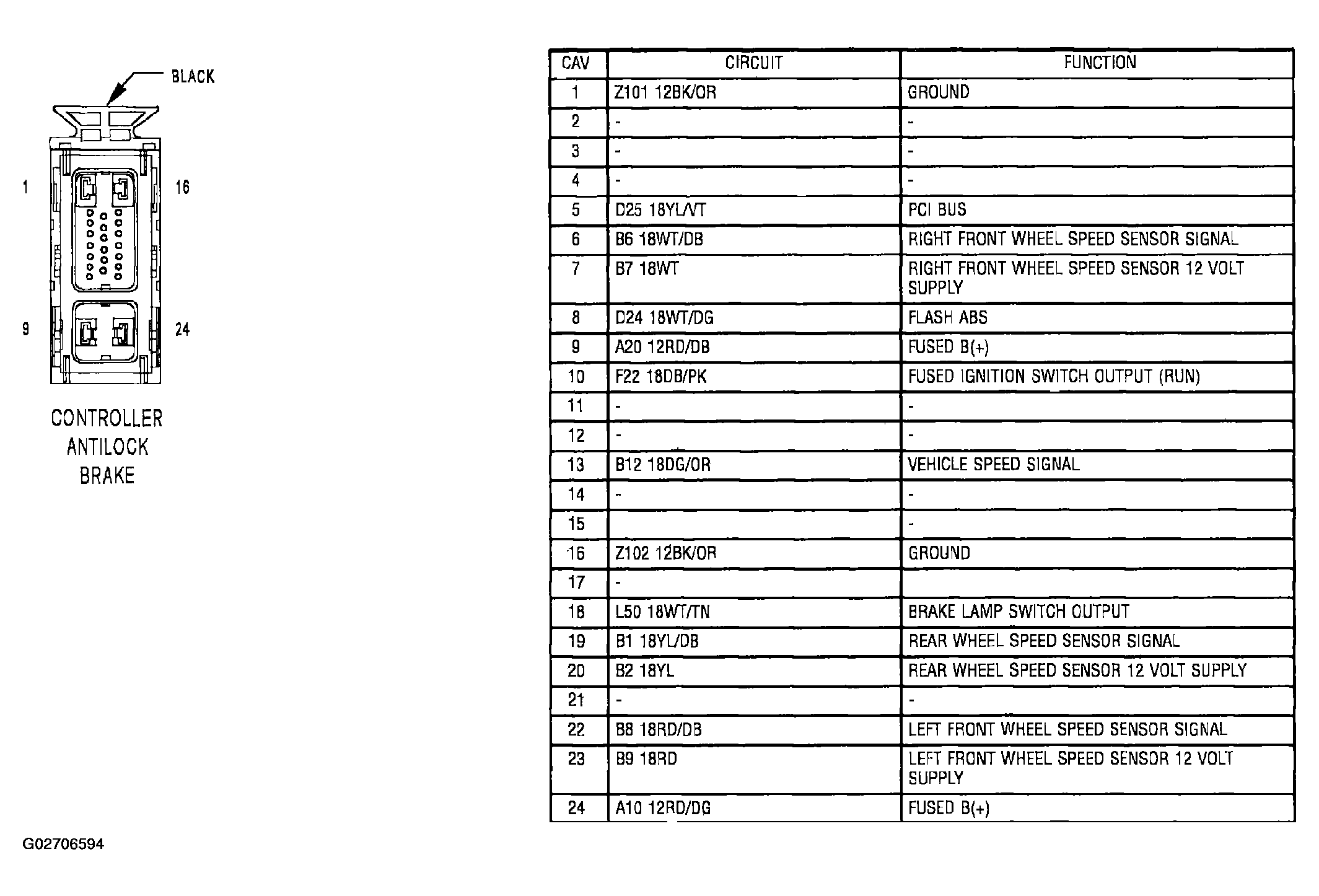

Fig 1: Antilock Brake Controller Connector End View

G02706594

Courtesy of DAIMLERCHRYSLER CORP.
