Ambient Temperature Sensor Connector End View

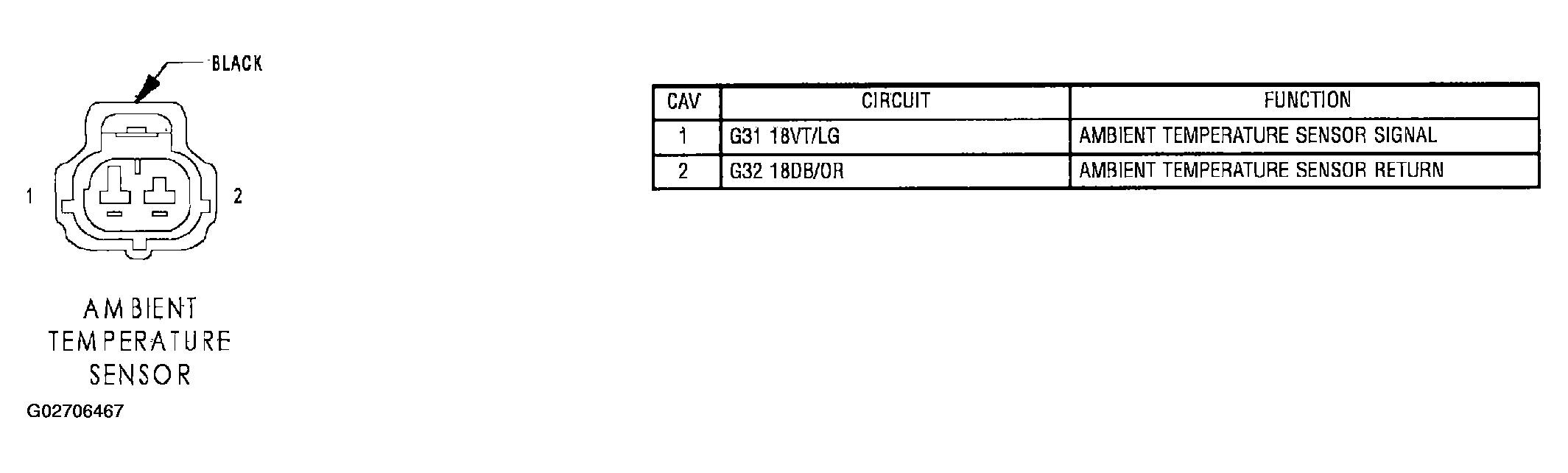

Fig 1: Ambient Temperature Sensor Connector End View

G02706467

Courtesy of DAIMLERCHRYSLER CORP.
