Shift Lever Error Codes

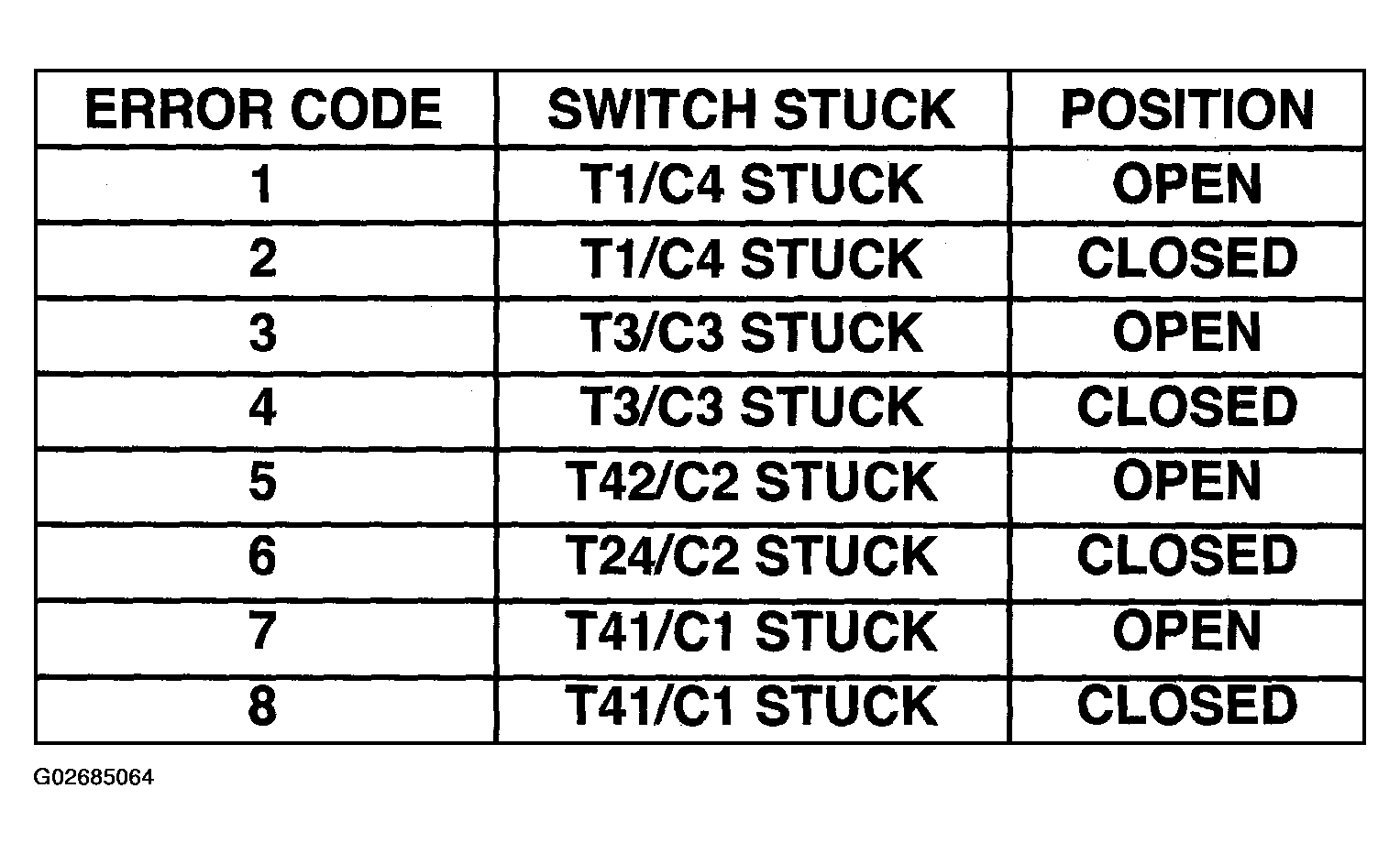

Fig 1: Shift Lever Error Codes Reported By DRBIII® - 42RLE
G02685064Courtesy of DAIMLERCHRYSLER CORP.

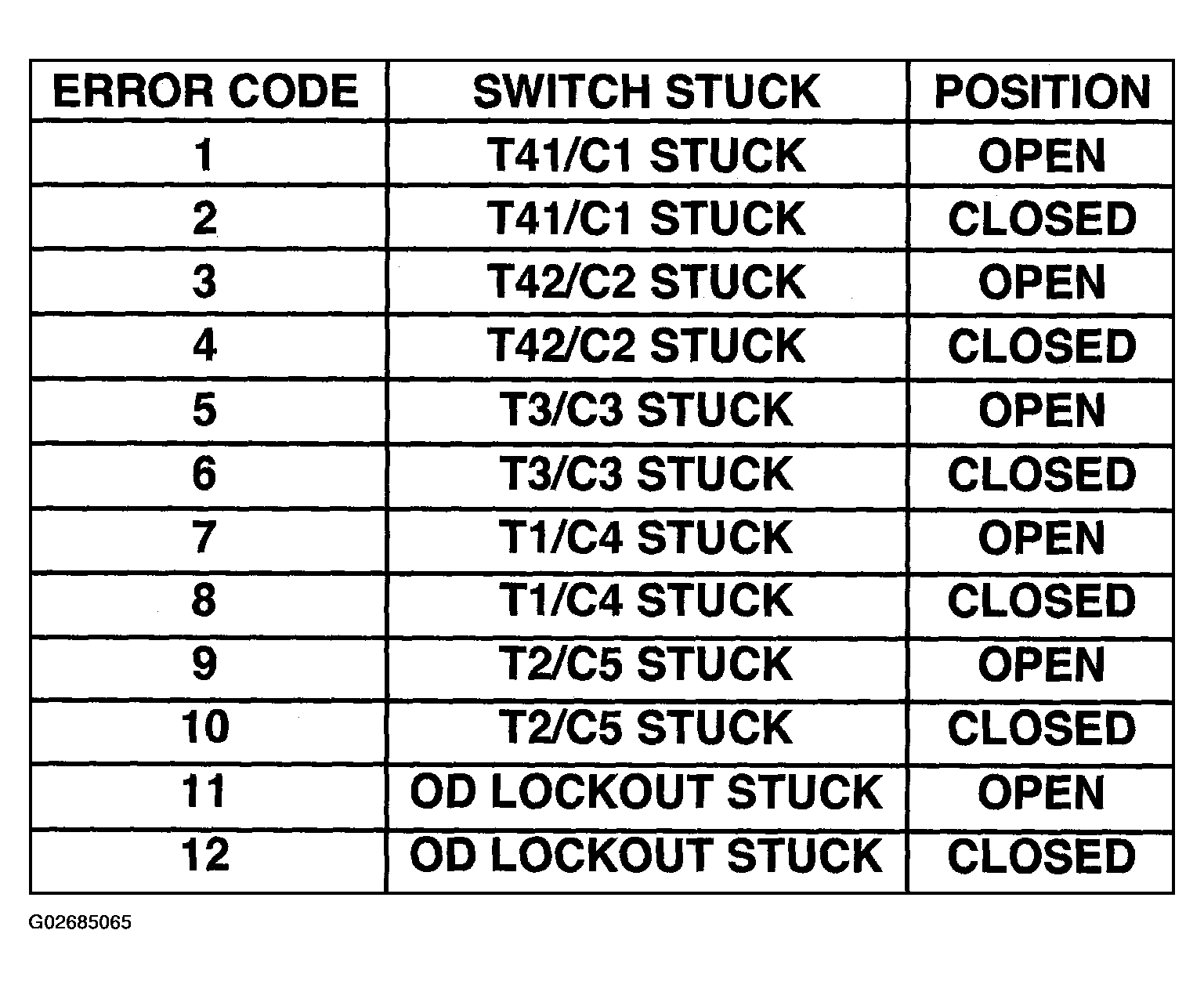

Fig 2: Shift Lever Error Codes Reported By DRBIII® - 45/545RFE
G02685065Courtesy of DAIMLERCHRYSLER CORP.
