Output Speed Sensor (Automatic Transmission) Connector End View

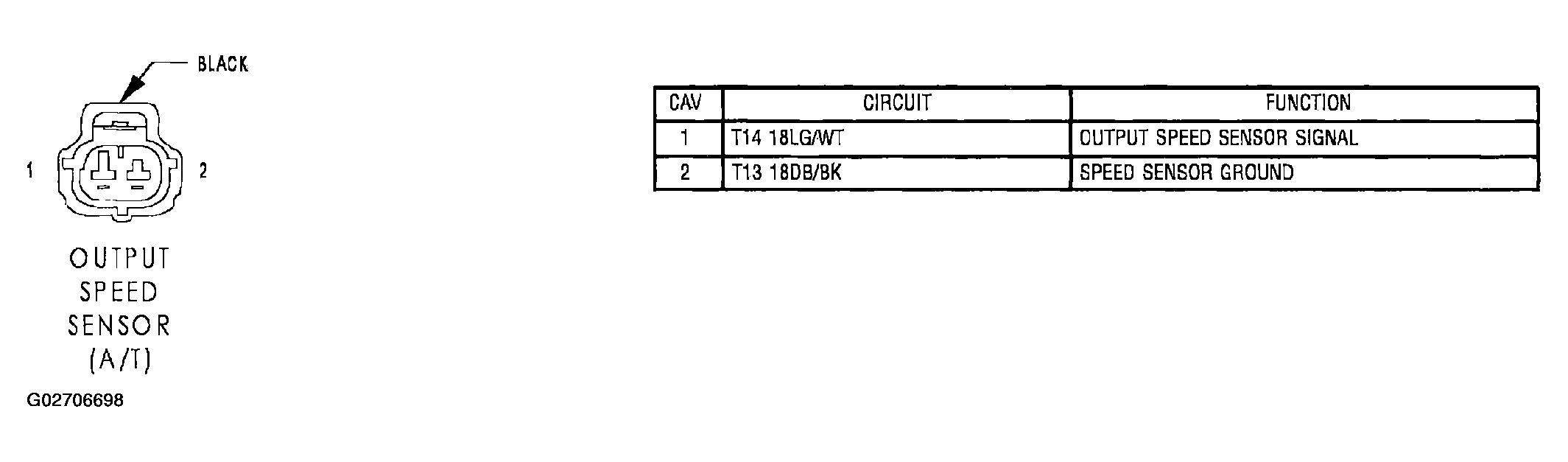

Fig 1: Output Speed Sensor (Automatic Transmission) Connector End View

G02706698

Courtesy of DAIMLERCHRYSLER CORP.
