Left Leveling Motor (Export) Connector End View

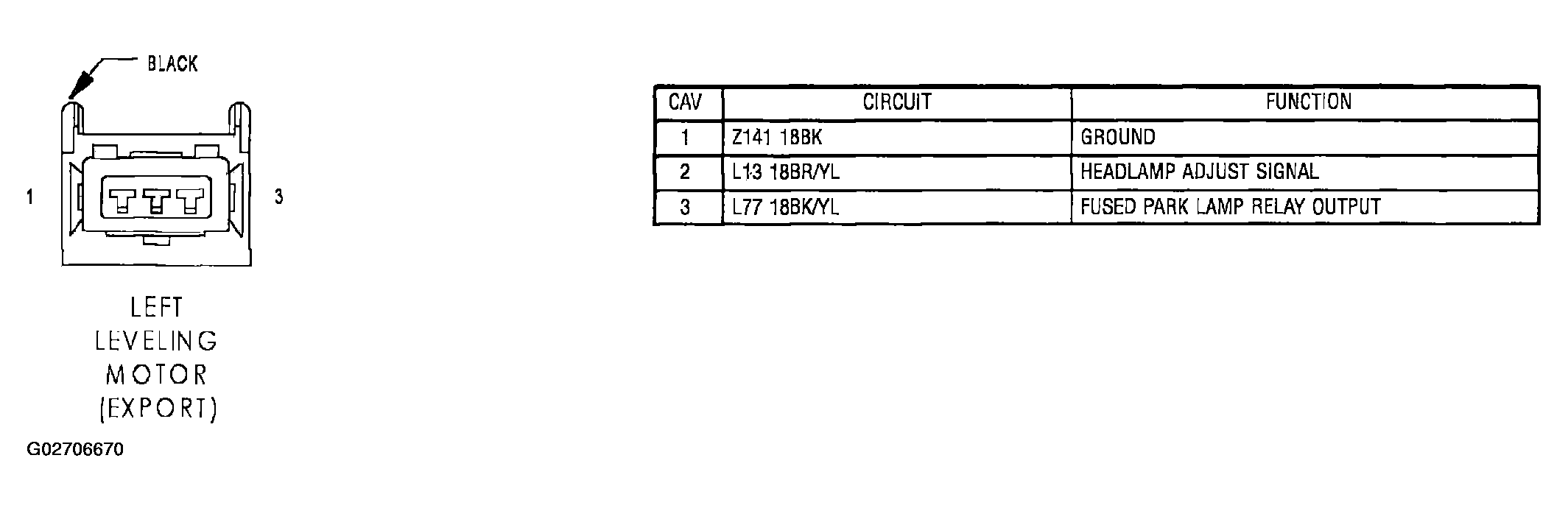

Fig 1: Left Leveling Motor (Export) Connector End View

G02706670

Courtesy of DAIMLERCHRYSLER CORP.
