Hazard Switch/Combination Flasher Connector End View

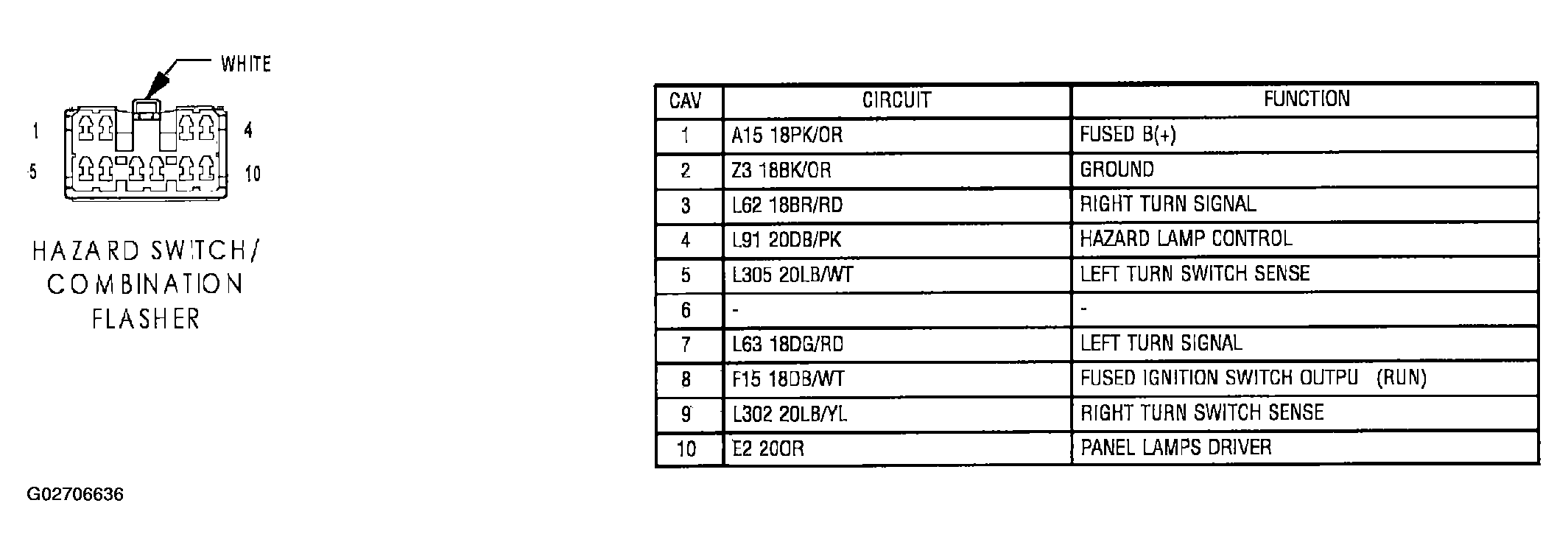

Fig 1: Hazard Switch/Combination Flasher Connector End View

G02706636

Courtesy of DAIMLERCHRYSLER CORP.
