Engine Coolant Level Sensor (Diesel) Connector End View

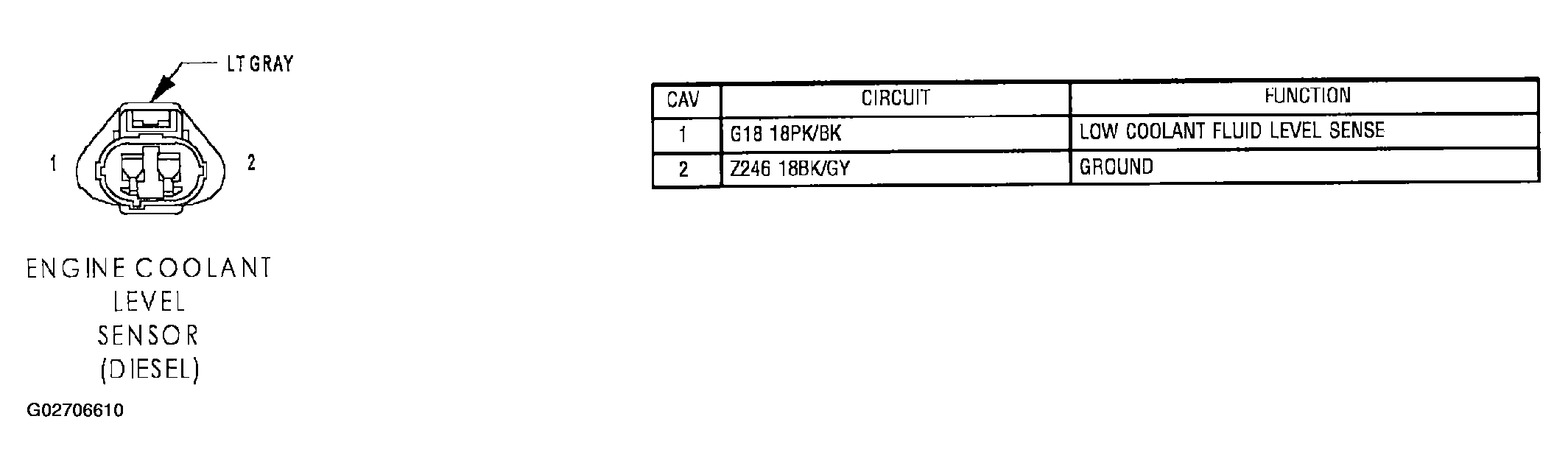

Fig 1: Engine Coolant Level Sensor (Diesel) Connector End View

G02706610

Courtesy of DAIMLERCHRYSLER CORP.
