Interior Lighting

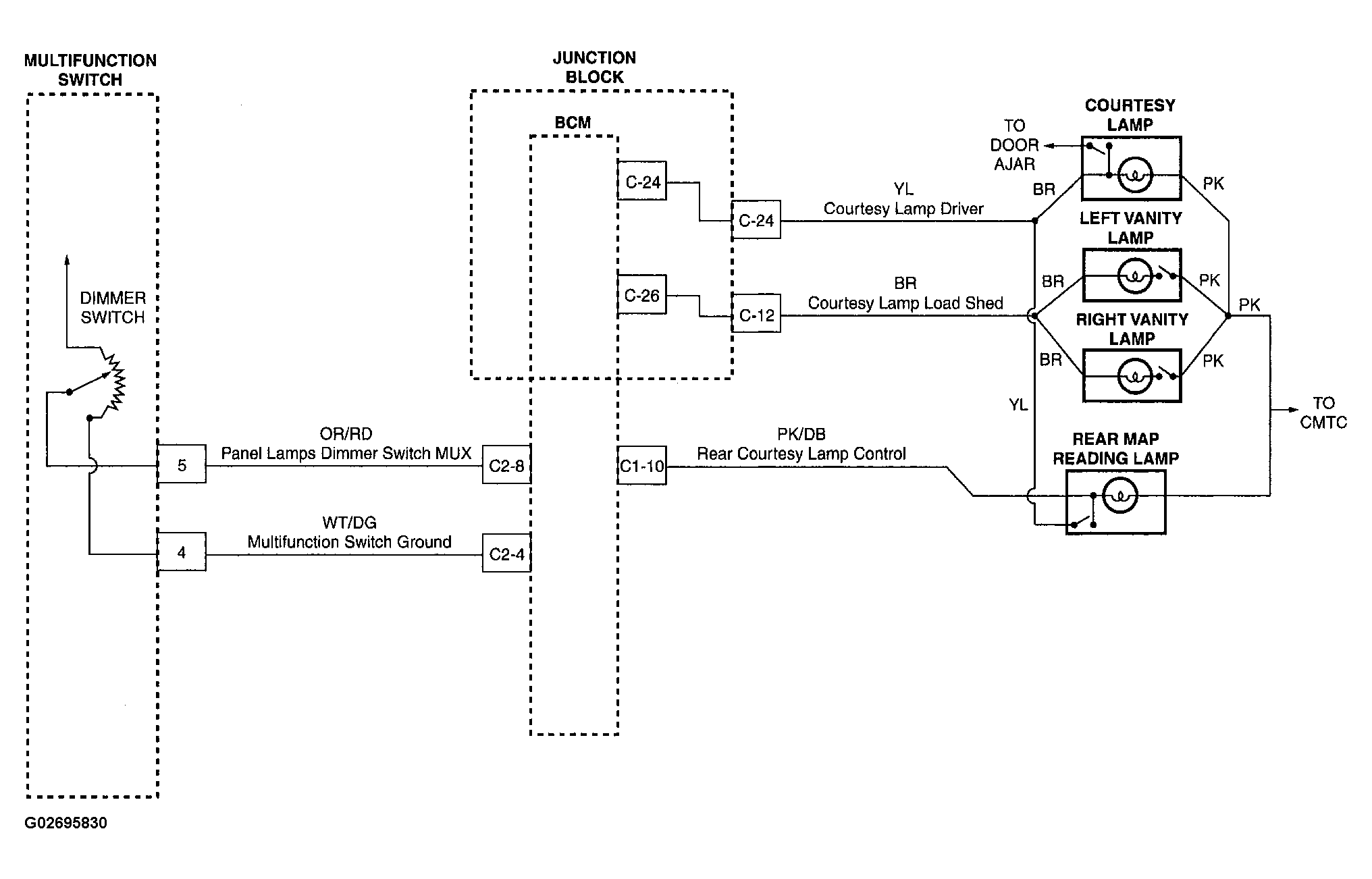

Fig 1: Interior Lighting Schematic Diagram

G02695830

Courtesy of DAIMLERCHRYSLER CORP.
