Transmission Control Module C2 (Diesel) - Black 14 Way Connector End View

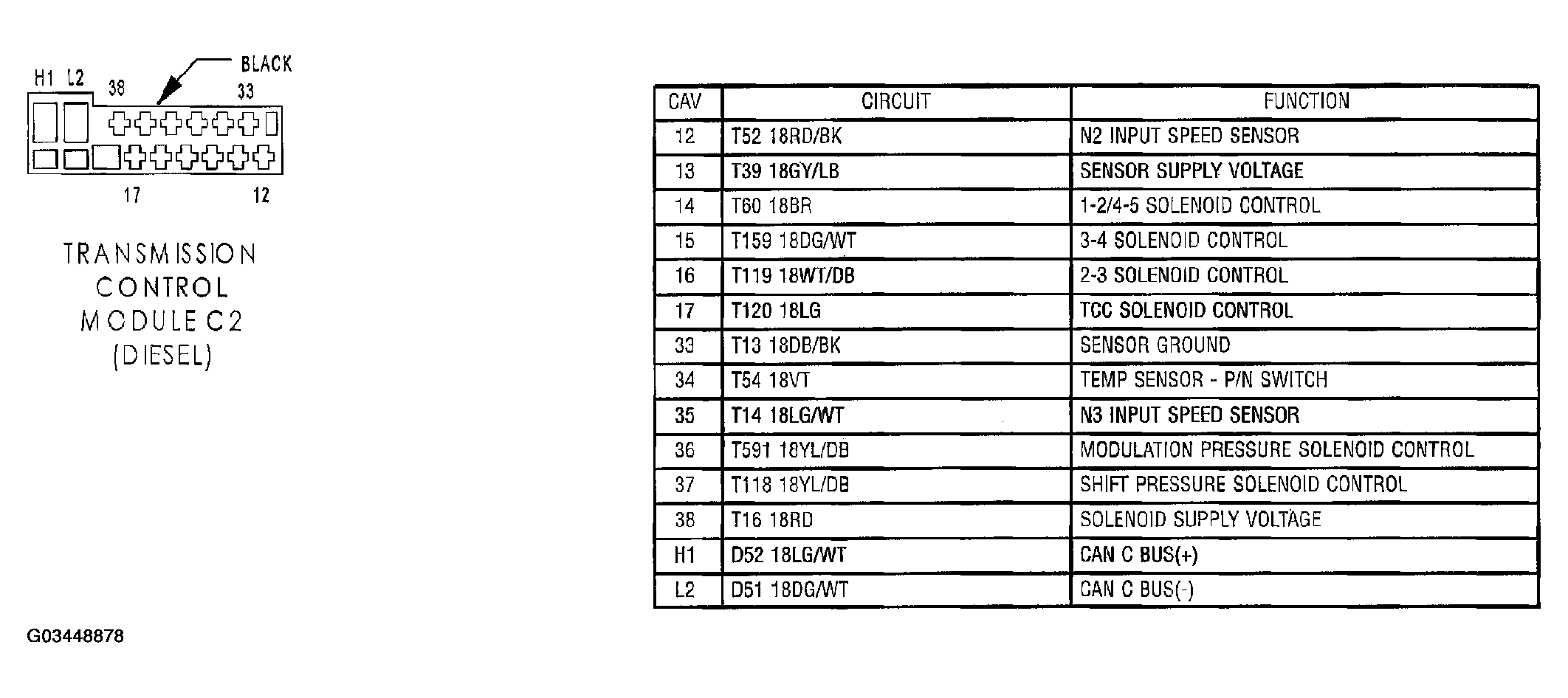

Fig 1: Transmission Control Module (Diesel) Connector End View (C2)

G03448878

Courtesy of DAIMLERCHRYSLER CORP.
