Transmission Control Module (4.7L) - Black 60 Way Connector End View

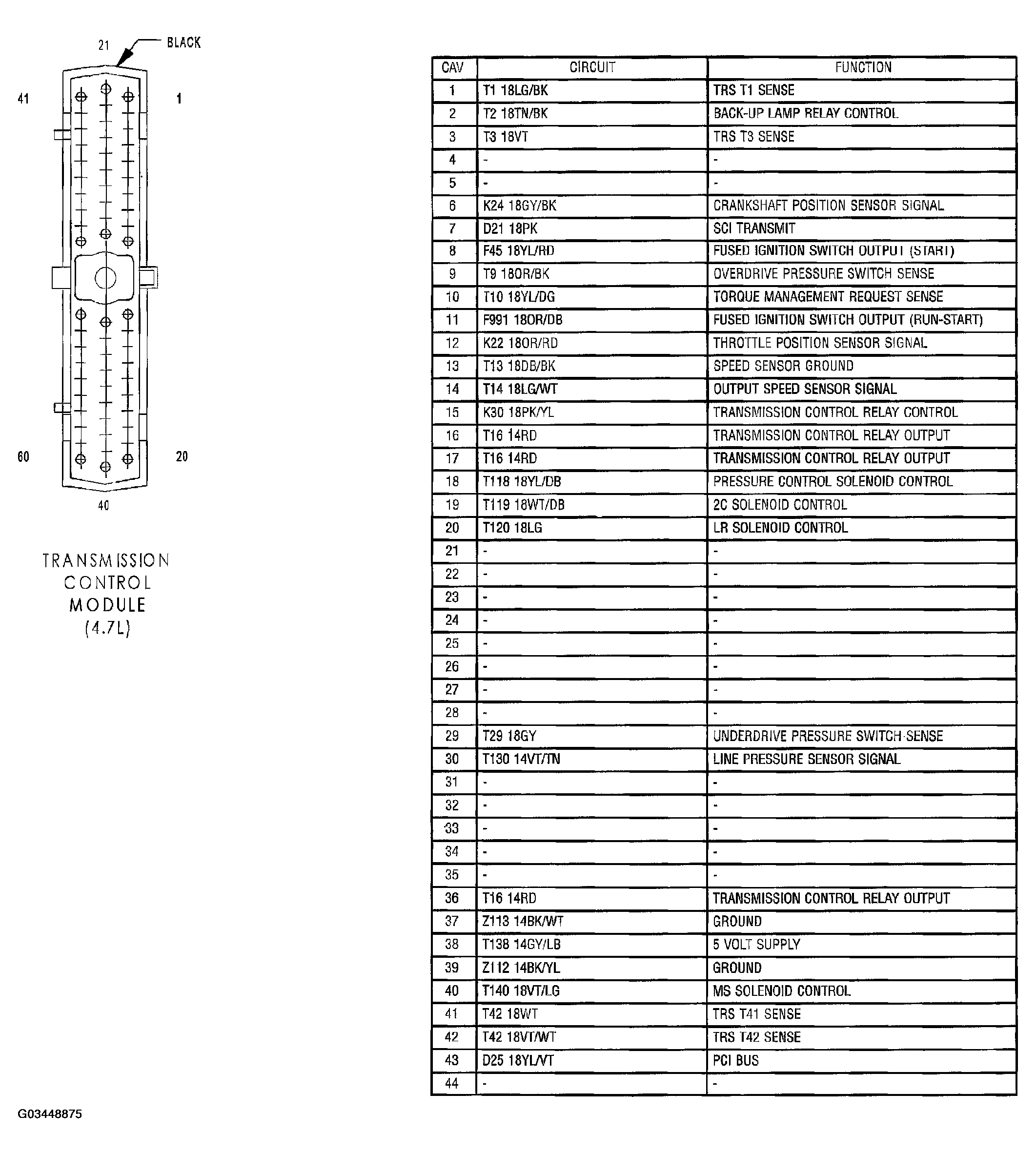

Fig 1: Transmission Control Module (4.7L) Connector End View
G03448875Courtesy of DAIMLERCHRYSLER CORP.

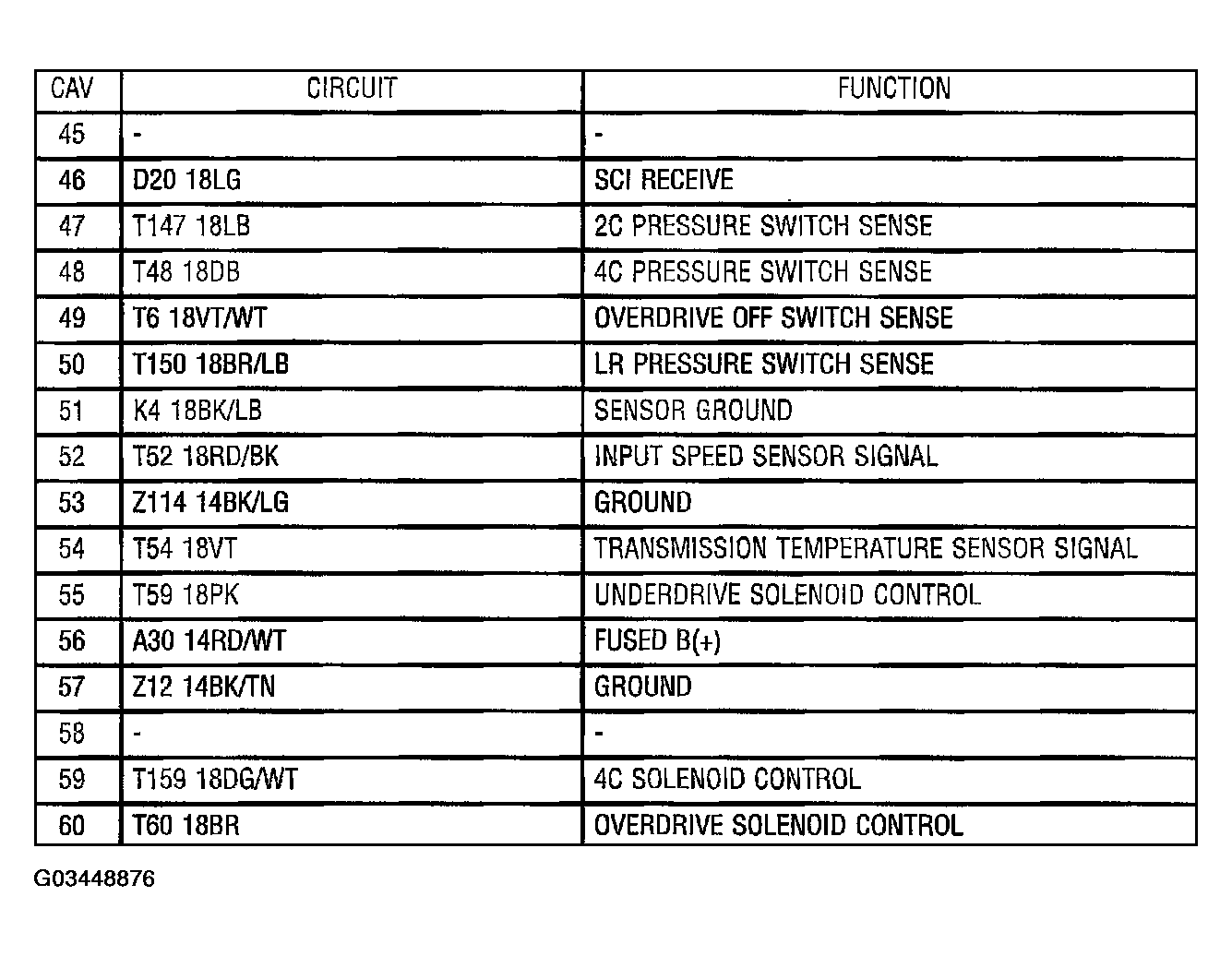

Fig 1: Transmission Control Module (4.7L) Connector End View
G03448876Courtesy of DAIMLERCHRYSLER CORP.
