Sentry Key Immobilizer Module - Black 6 Way Connector End View

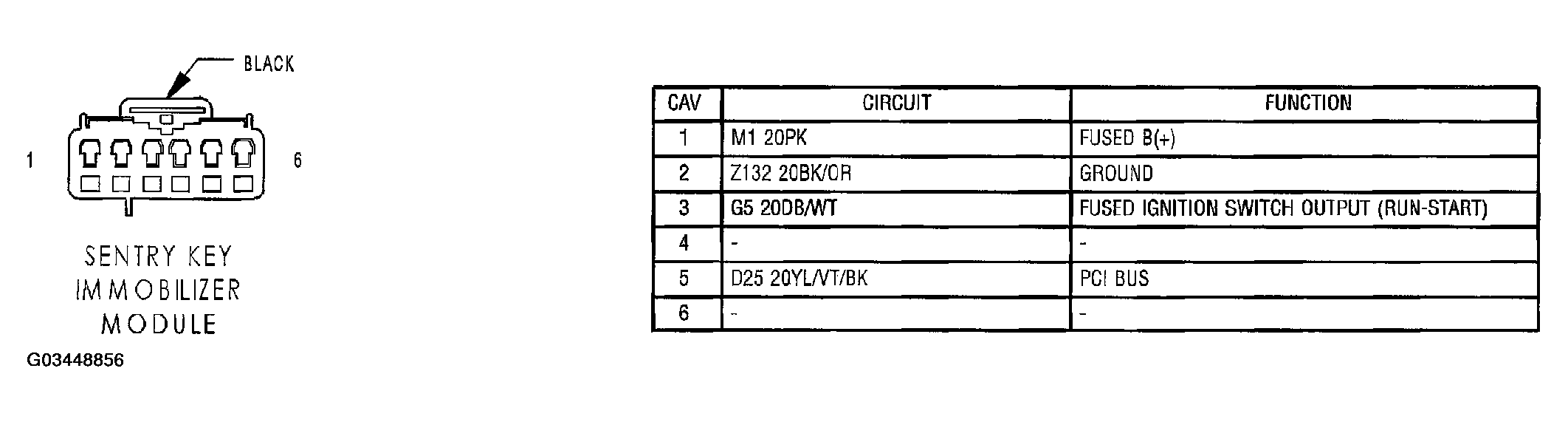

Fig 1: Sentry Key Immobilizer Module Connector End View

G03448856

Courtesy of DAIMLERCHRYSLER CORP.
