Right Multi-Function Switch - White 10 Way Connector End View

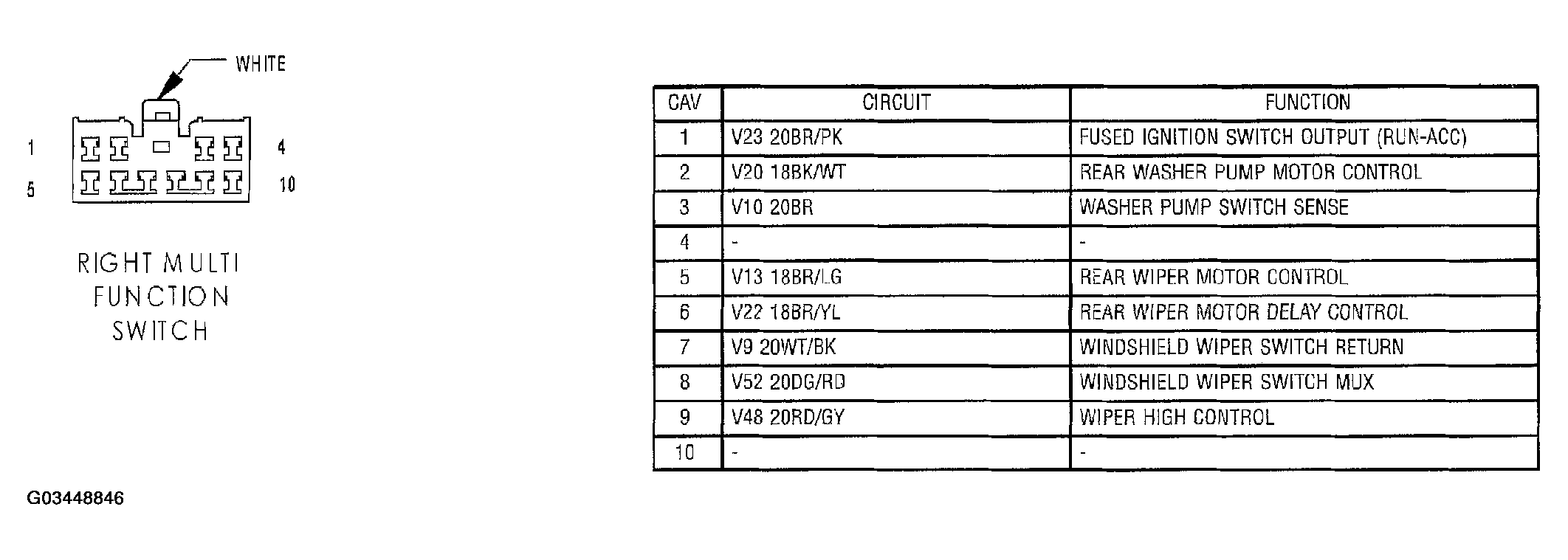

Fig 1: Right Multifunction Switch Connector End View

G03448846

Courtesy of DAIMLERCHRYSLER CORP.
