Radio C2 Connector End View

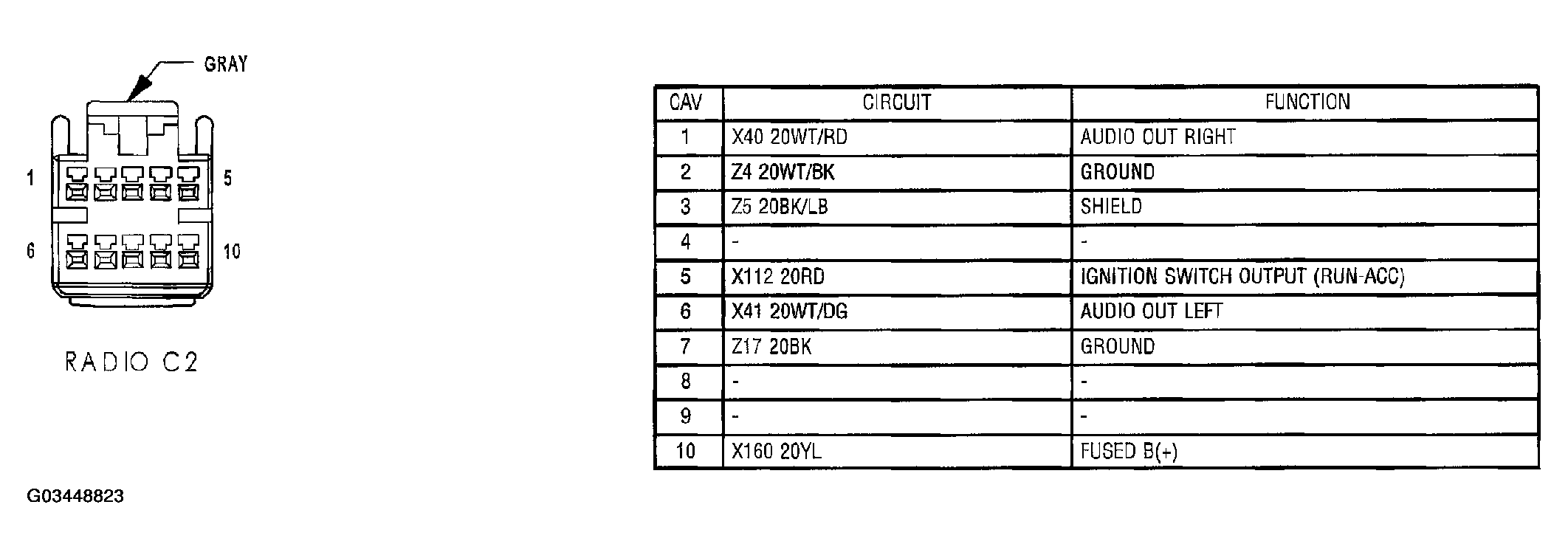

Fig 1: Radio Connector End View (C2)

G03448823

Courtesy of DAIMLERCHRYSLER CORP.
