Engine Control Module C1 (Diesel) - Black 81 Way Connector End View

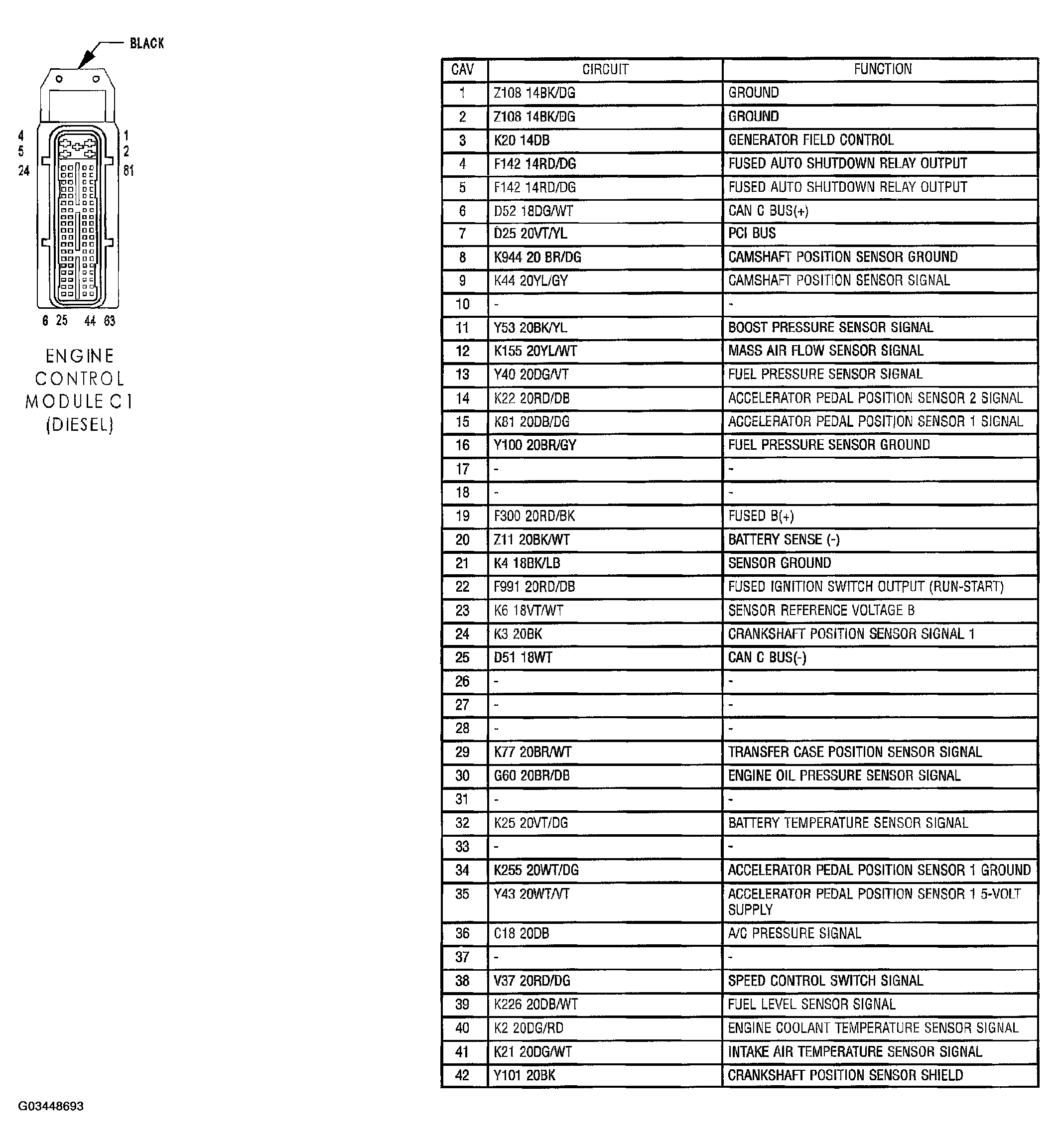

Fig 1: Engine Control Module (Diesel) Connector End View (C1)
G03448693Courtesy of DAIMLERCHRYSLER CORP.

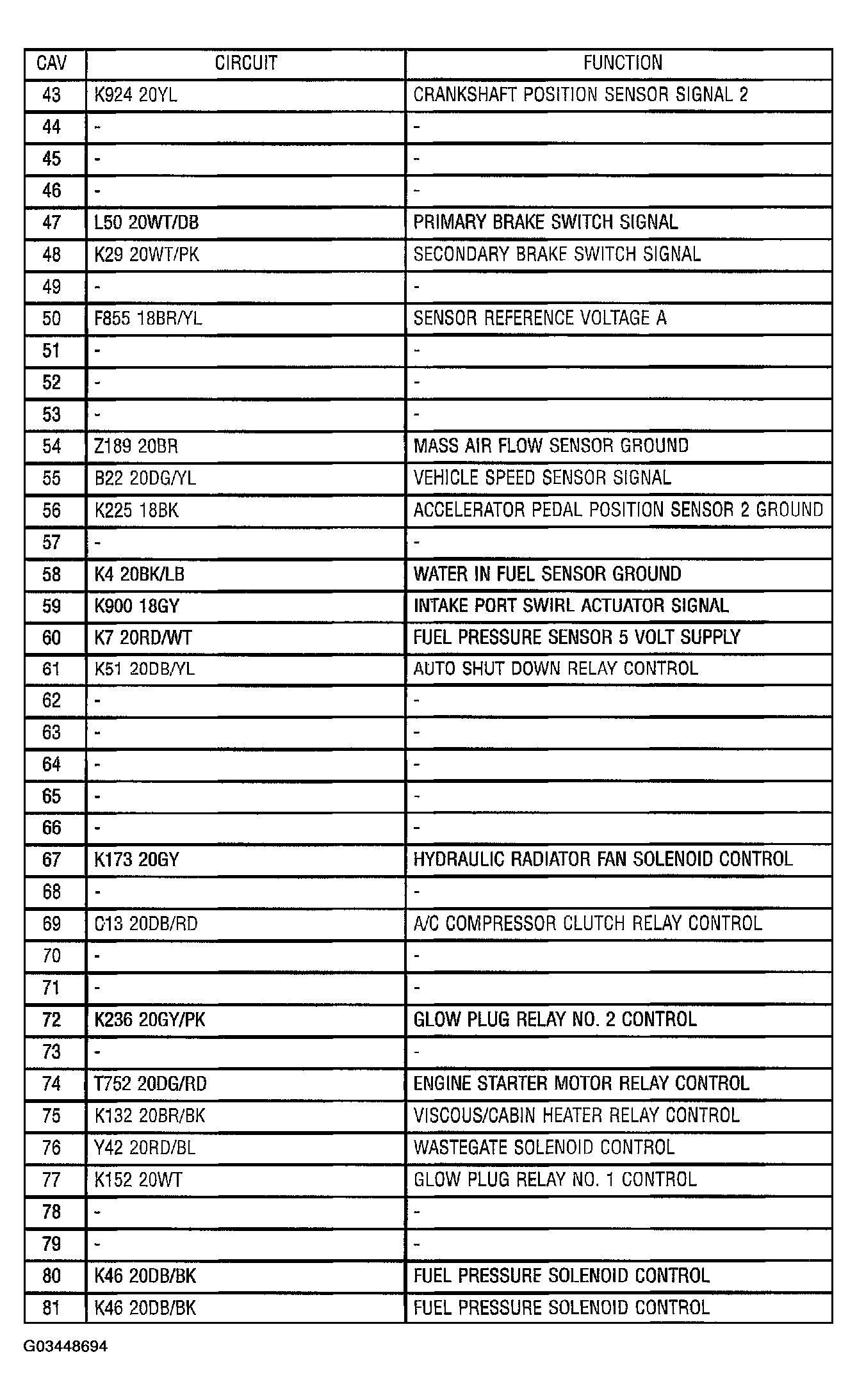

Fig 1: Engine Control Module (Diesel) Connector End View (C1)
G03448694Courtesy of DAIMLERCHRYSLER CORP.
