Automatic Zone Control Module C2 (AZC) - Black 12 Way Connector End View

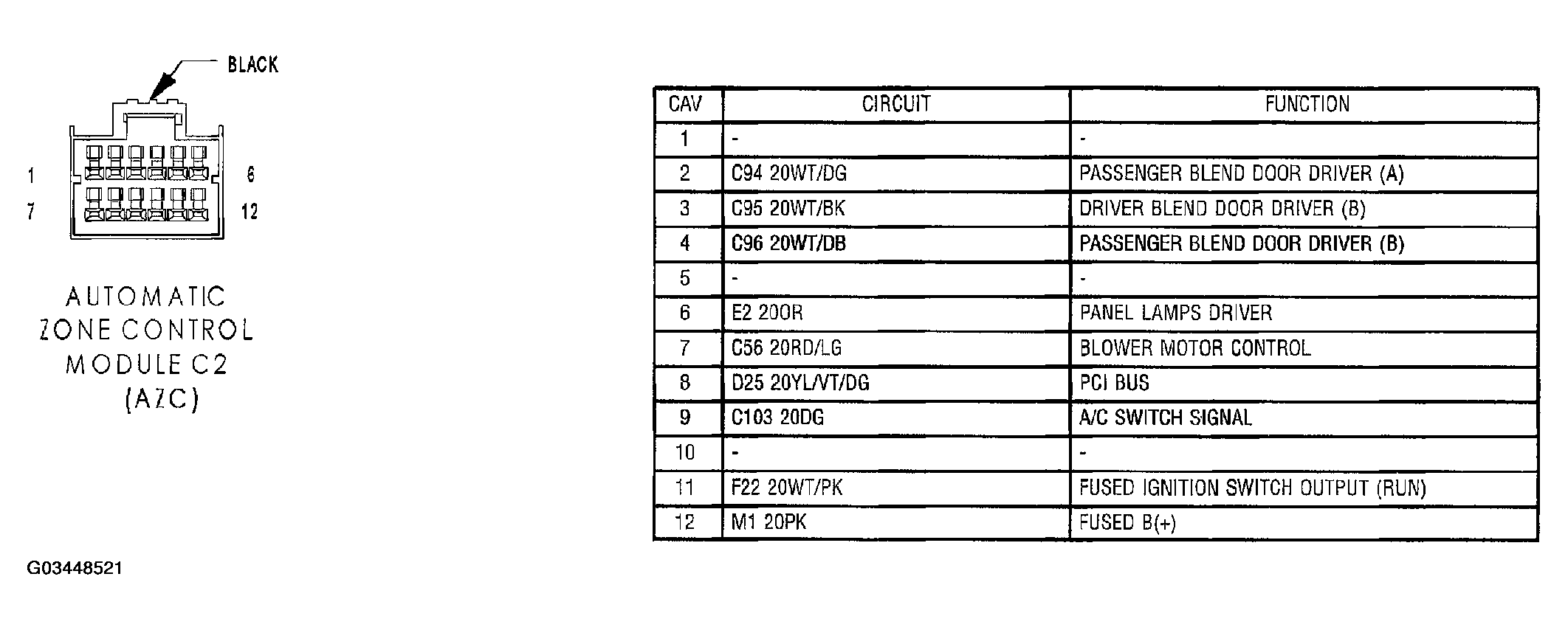

Fig 1: Automatic Zone Control Module Connector End View (C2)

G03448521

Courtesy of DAIMLERCHRYSLER CORP.
