Adjustable Pedals Module (Except Export) - Green 14 Way Connector End View

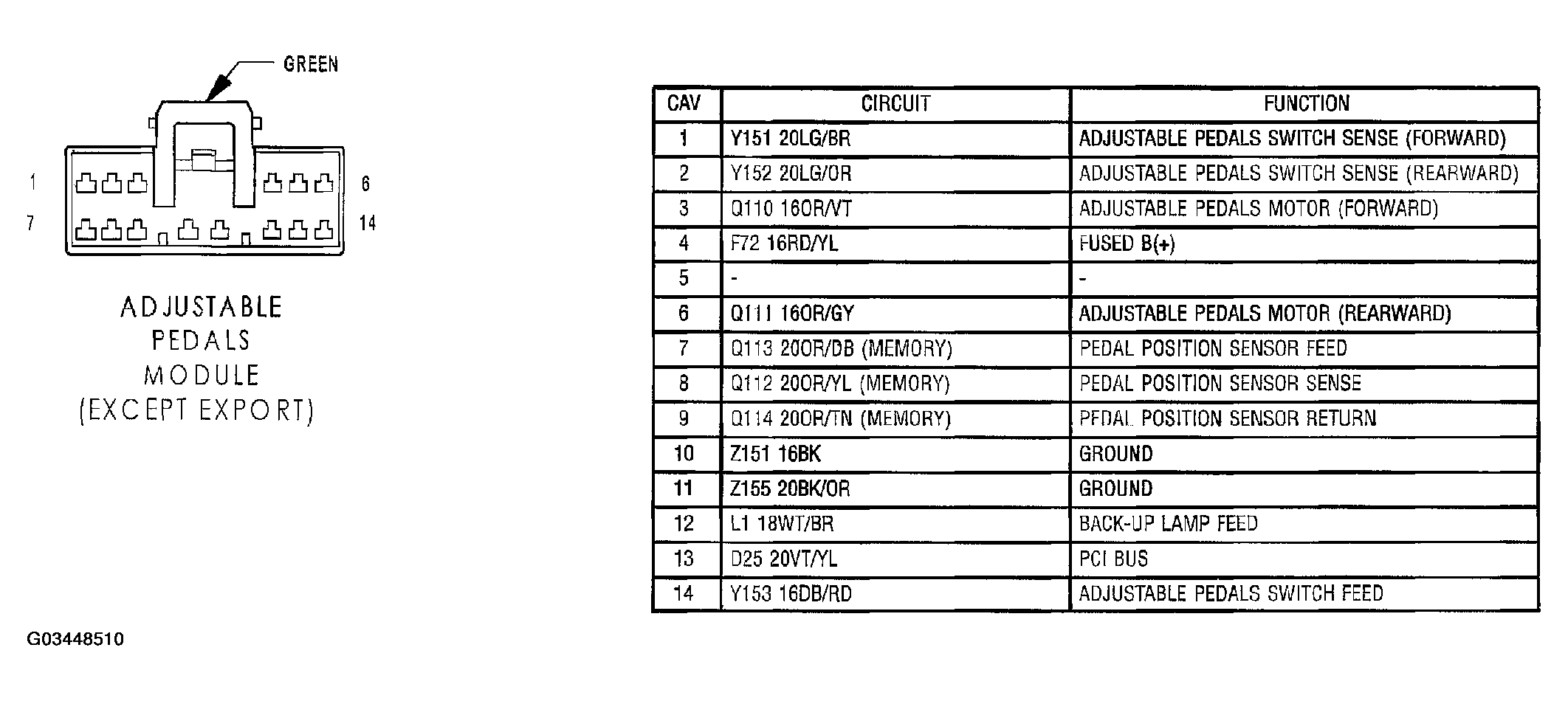

Fig 1: Adjustable Pedals Module (Except Export) Connector End View

G03448510

Courtesy of DAIMLERCHRYSLER CORP.
