Remote Keyless Module (Japan) - Blue 6 Way Connector End View

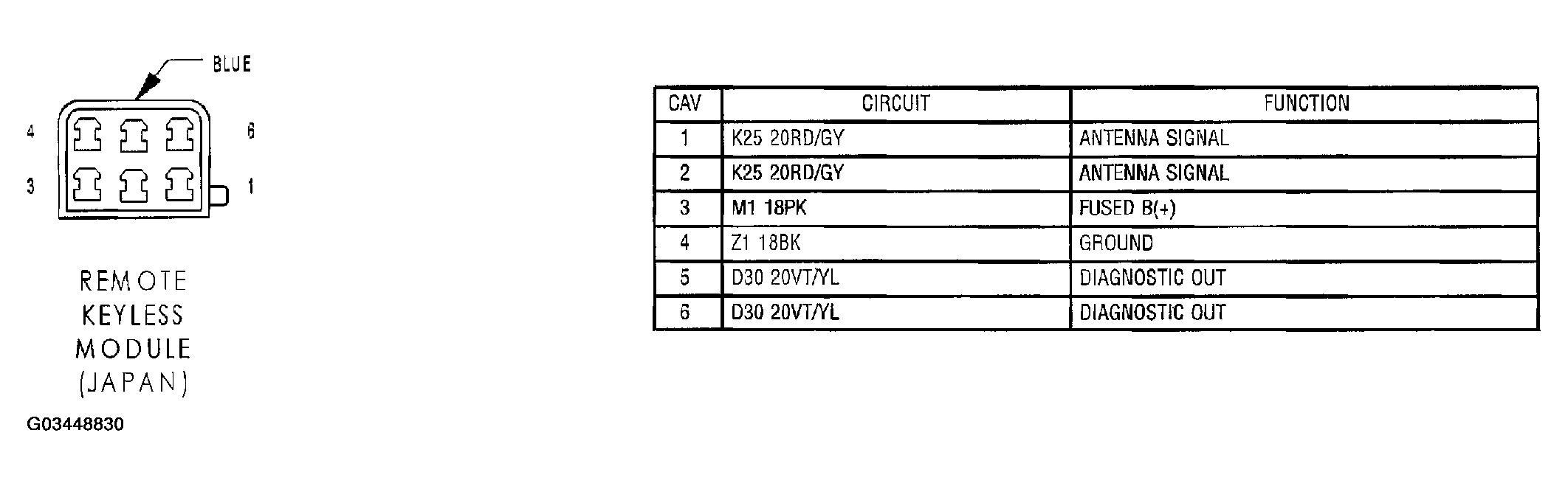

Fig 1: Remote Keyless Module (Japan) Connector End View

G03448830

Courtesy of DAIMLERCHRYSLER CORP.
