Intrusion Transceiver Module (Export Only)

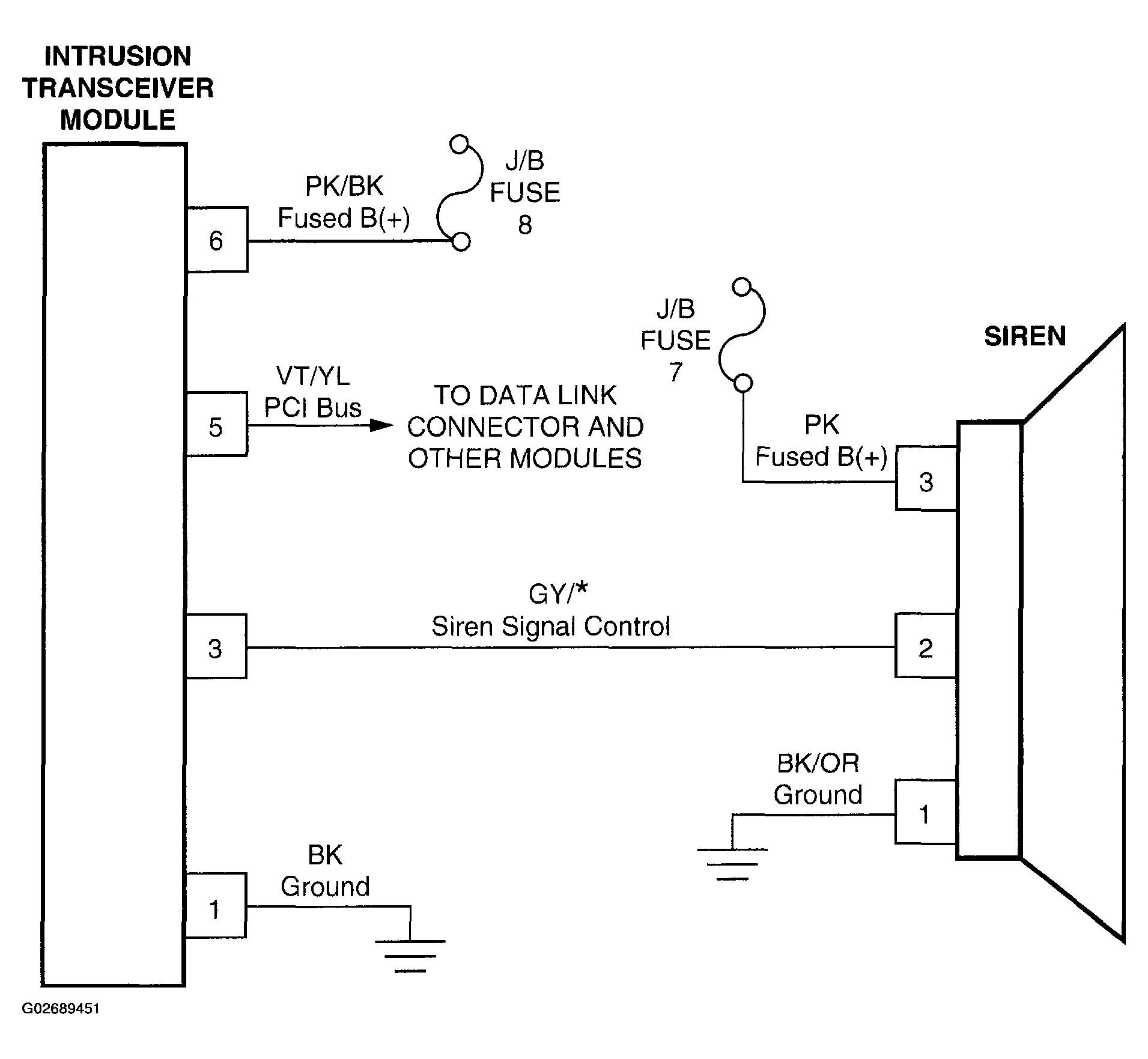

Fig 1: Identifying Intrusion Transceiver Module (Export Only) Schematic Diagram

G02689451

Courtesy of DAIMLERCHRYSLER CORP.
