Home >> Jeep >> 2003 >> Grand Cherokee Overland >> Repair and Diagnosis >> Body & Frame >> Body, Cab Control Systems >> Body Diagnostic Procedures >> Schematic Diagrams >> Power Windows >> Driver Side

Driver Side

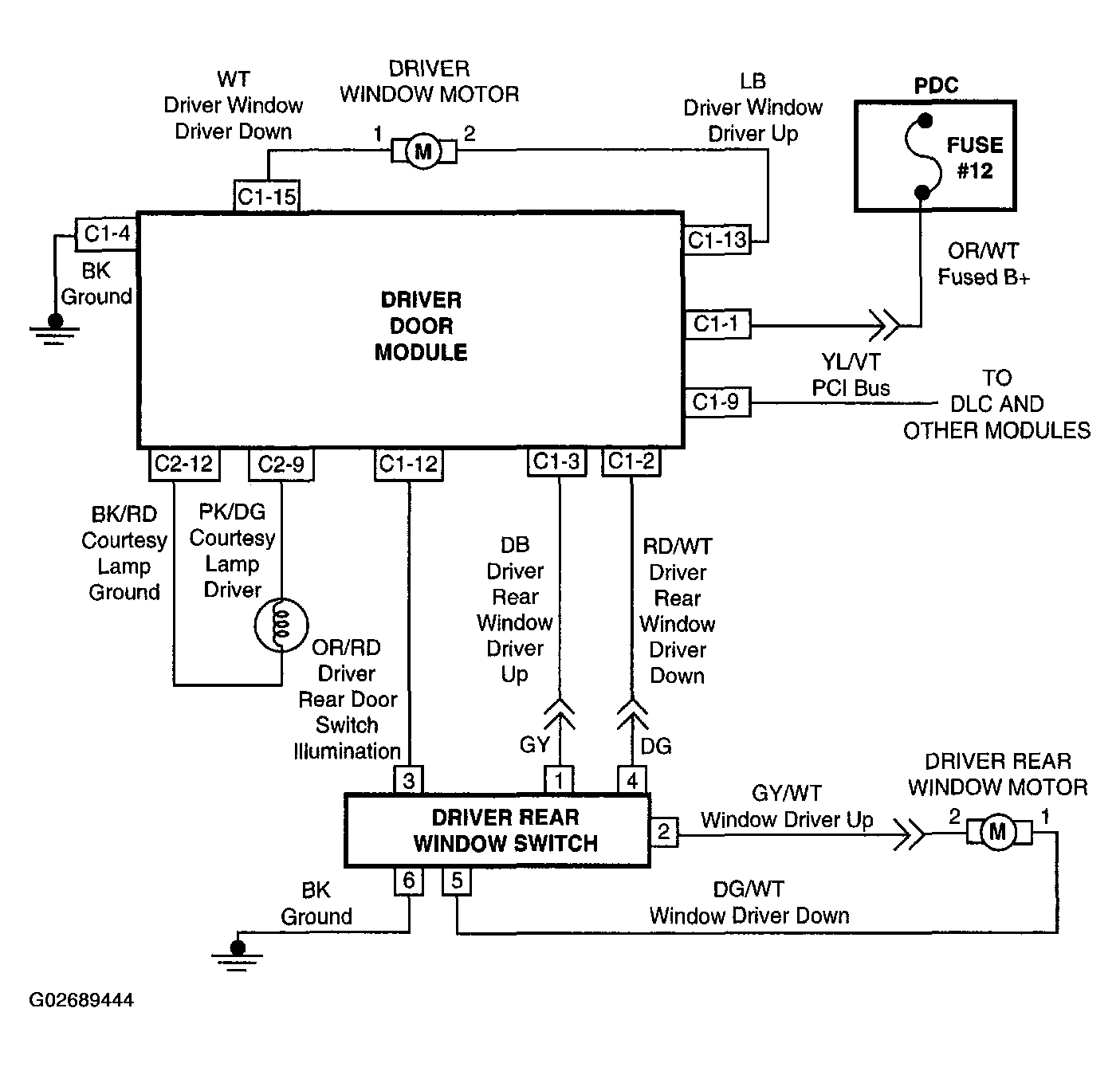

Fig 1: Identifying Power Windows Driver Side Schematic Diagram

G02689444

Courtesy of DAIMLERCHRYSLER CORP.
