Home >> Jeep >> 2002 >> Wrangler SE, Standard >> Repair and Diagnosis >> Steering >> Power Steering Gear >> Gear >> Specifications >> Torque Chart

Torque Chart

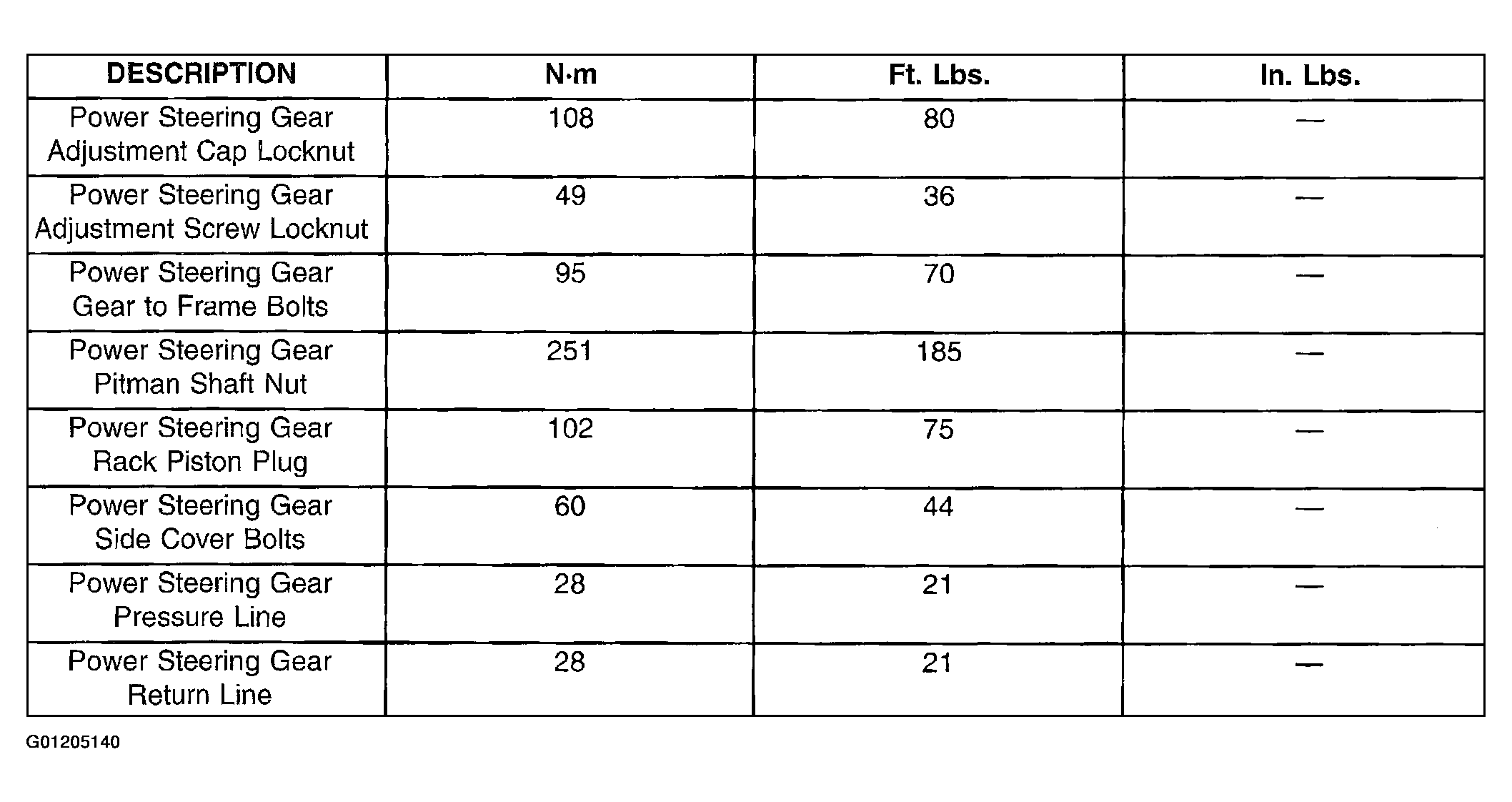

Fig 1: Power Steering Gear Torque Specifications

G01205140

Courtesy of DAIMLERCHRYSLER CORP.
