Powertrain Control Module C1 - Black/Black 38 Way Connector End View

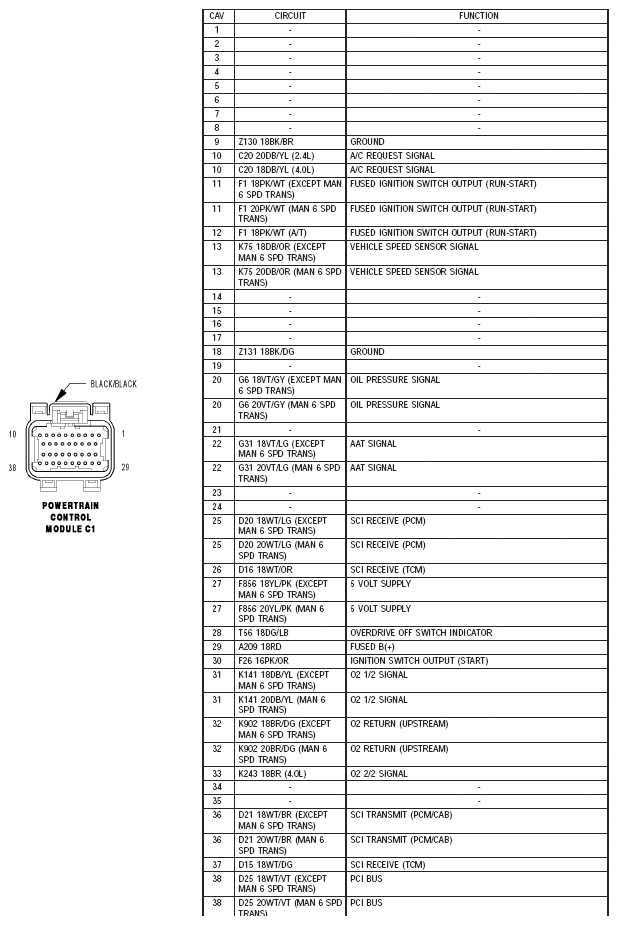

Fig 1: Powertrain Control Module C1 - Black/Black 38 Way Connector End View

G04764098

Courtesy of CHRYSLER GROUP, LLC
