Axle Lock Switch (Off-Road Package) Connector End View

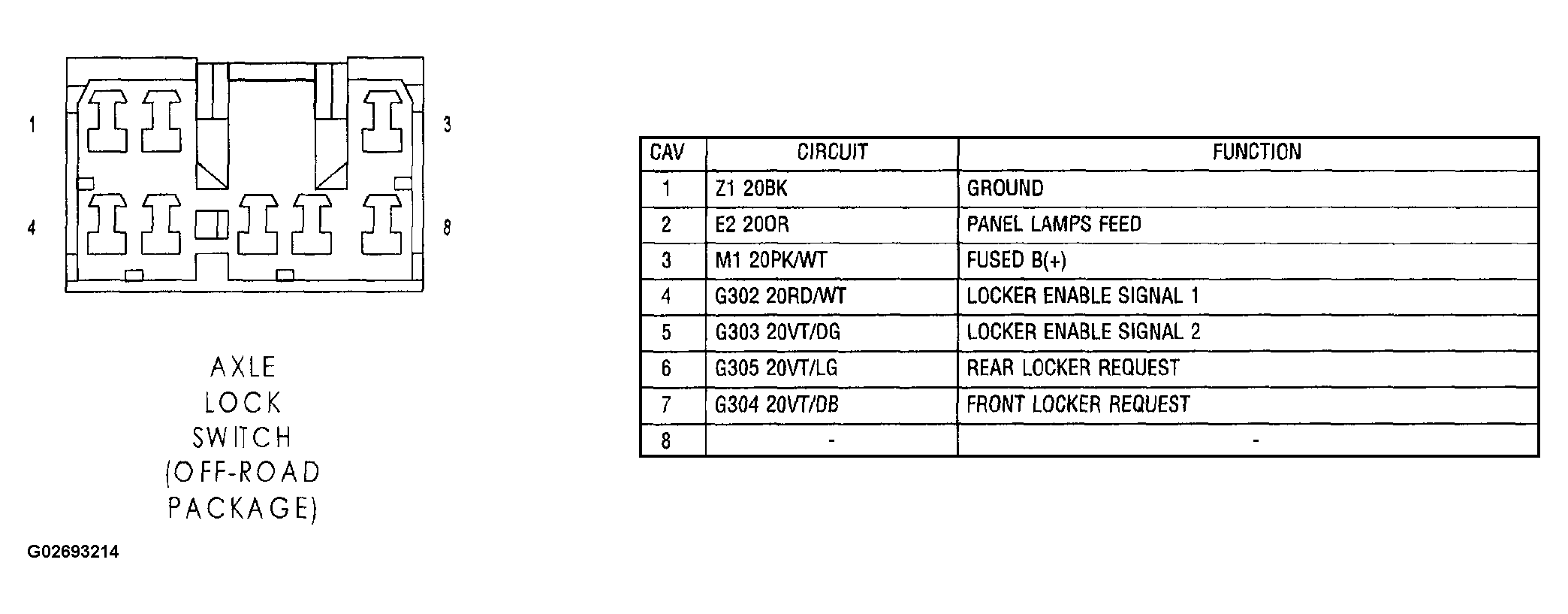

Fig 1: Axle Lock Switch (Off-Road Package) Connector End View

G02693214

Courtesy of CHRYSLER GROUP, LLC
