Ambient Temperature Sensor (Compass/Temperature Mirror) Connector End View

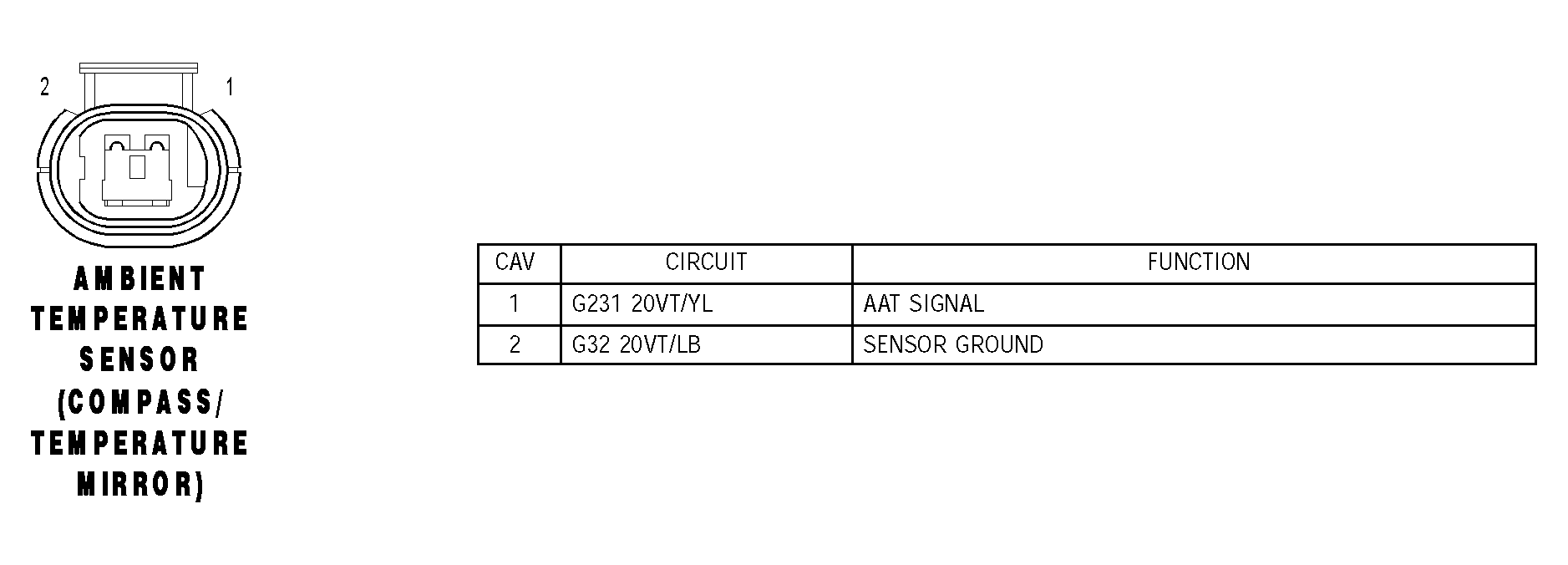

Fig 1: Ambient Temperature Sensor (Compass/Temperature Mirror) Connector End View

G04550665

Courtesy of CHRYSLER GROUP, LLC
