Tailgate Lock Motor/Ajar Switch Connector End View

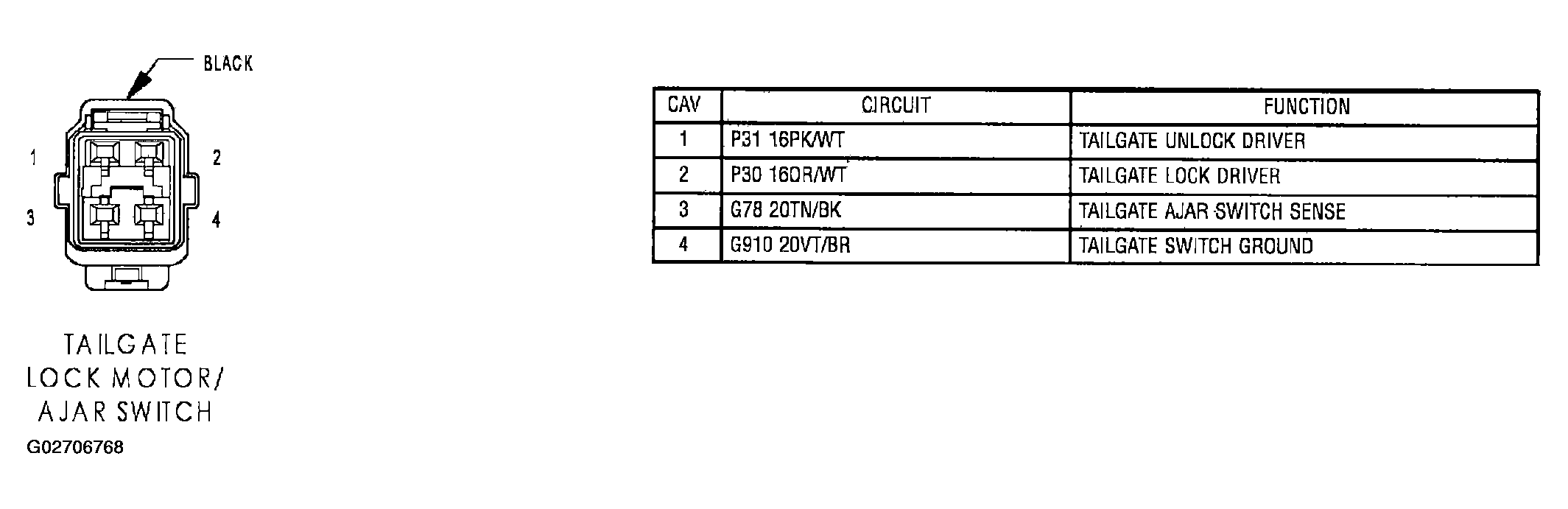

Fig 1: Tailgate Lock Motor/Ajar Switch Connector End View

G02706768

Courtesy of CHRYSLER GROUP, LLC
