Sunroof Switch Connector End View
Sunroof Switch Connector End View

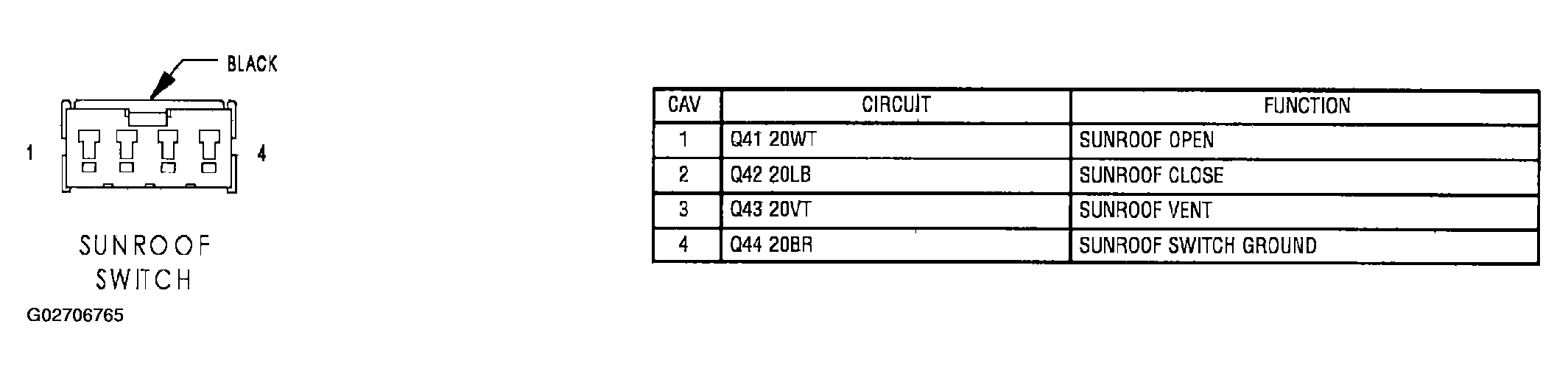

Fig 1: Sunroof Switch Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
