Red Brake Warning Indicator Switch Connector End View

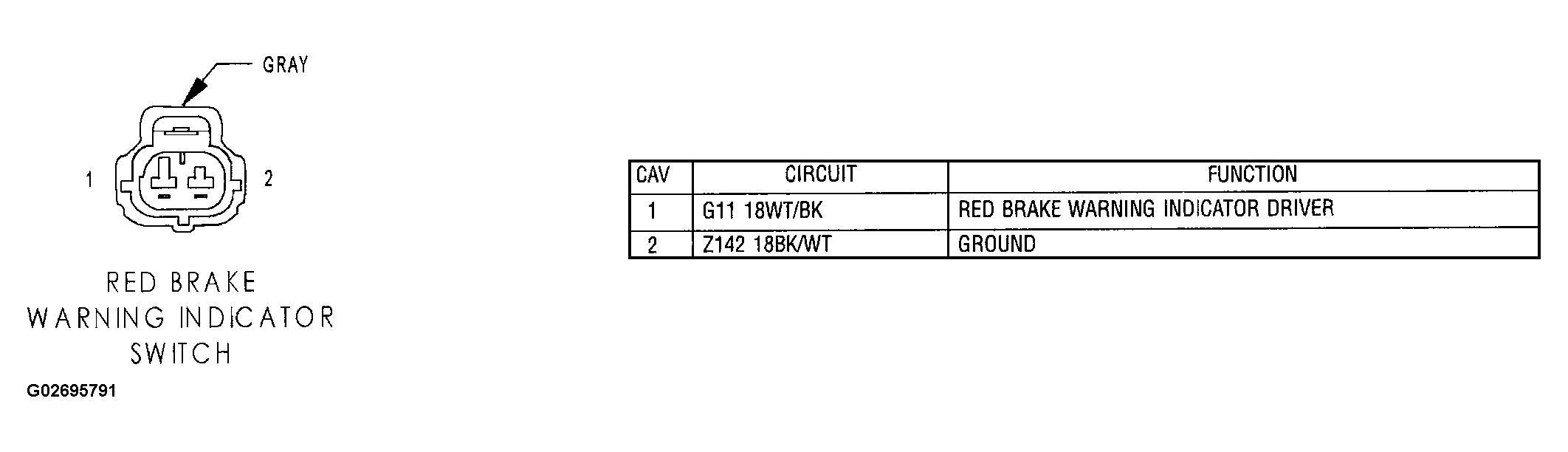

Fig 1: Red Brake Warning Indicator Switch Connector End View

G02695791

Courtesy of CHRYSLER GROUP, LLC
