Radio C2 Connector End View

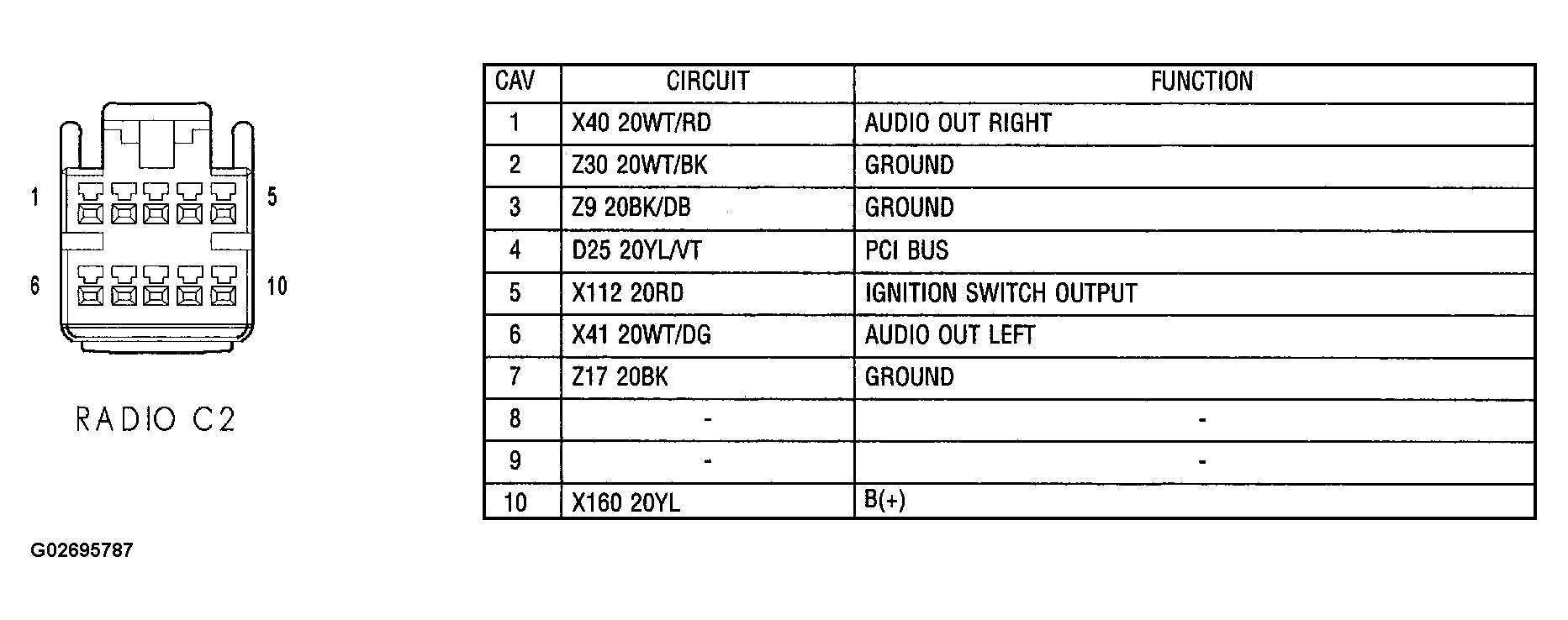

Fig 1: Radio C2 Connector End View

G02695787

Courtesy of CHRYSLER GROUP, LLC
