Power Window Master Switch (Midline/Highline) Connector End View

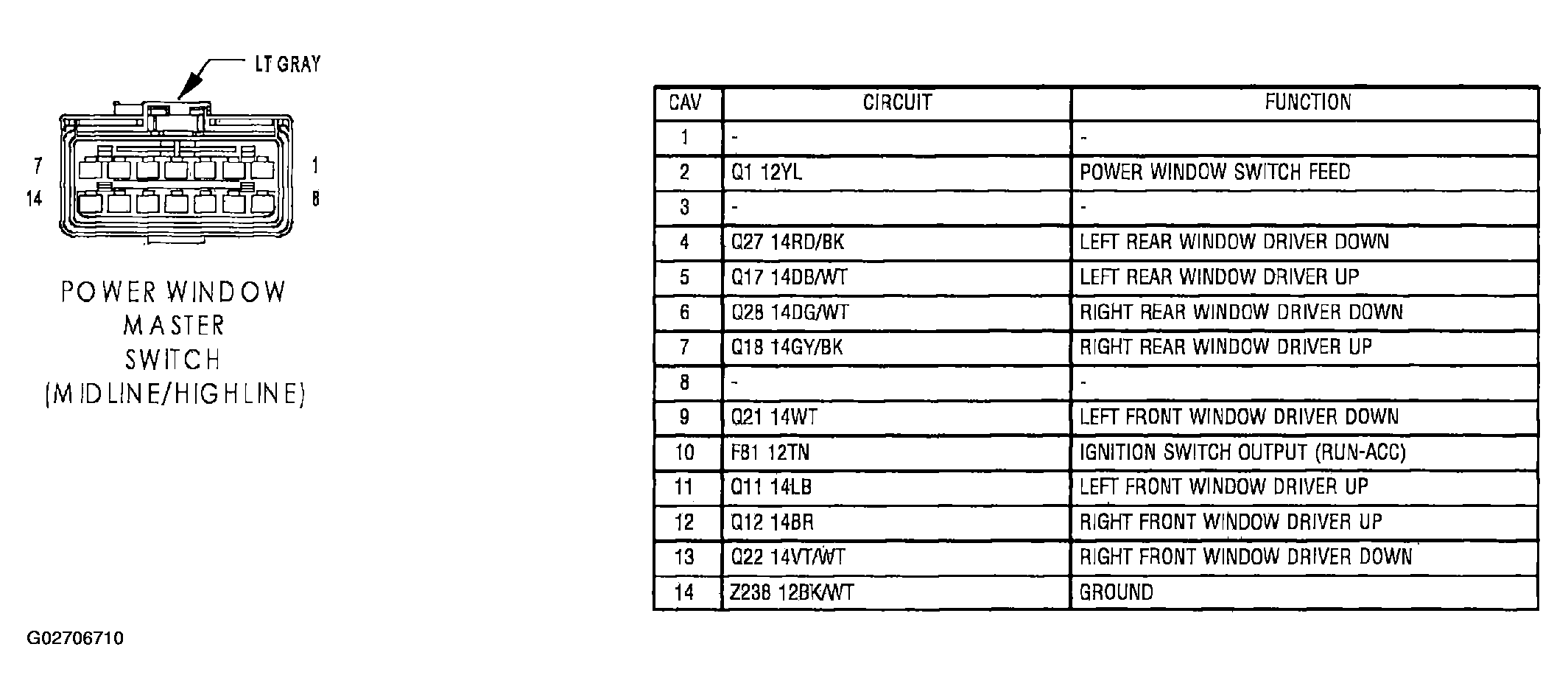

Fig 1: Power Window Master Switch (Midline/Highline) Connector End View

G02706710

Courtesy of CHRYSLER GROUP, LLC
