Knock Sensor (3.7L) Connector End View

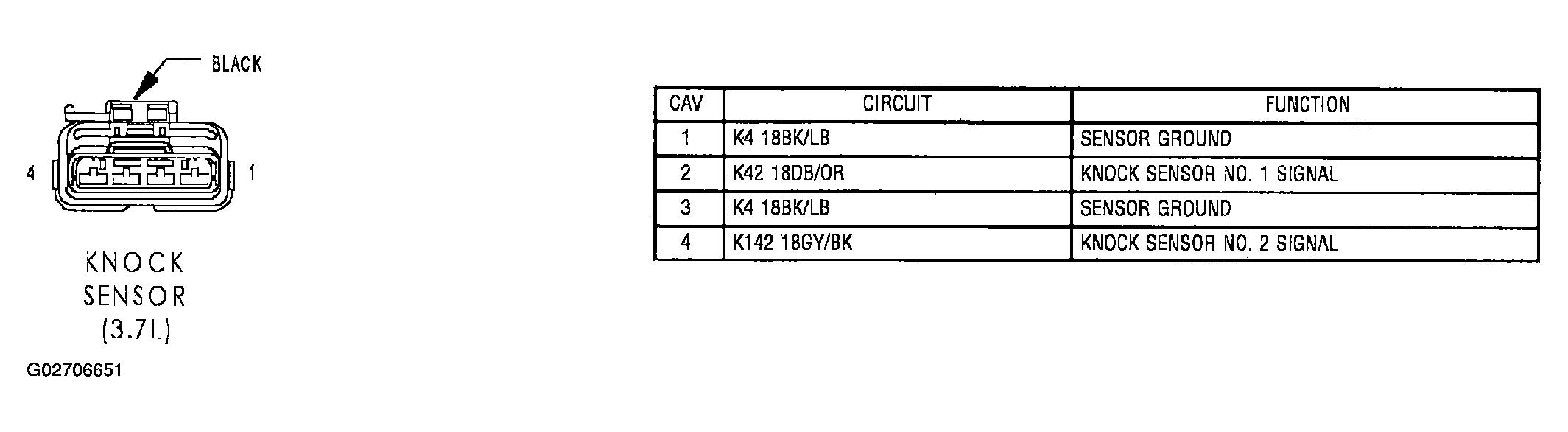

Fig 1: Knock Sensor (3.7L) Connector End View

G02706651

Courtesy of CHRYSLER GROUP, LLC
