Idle Air Control Motor Connector End View

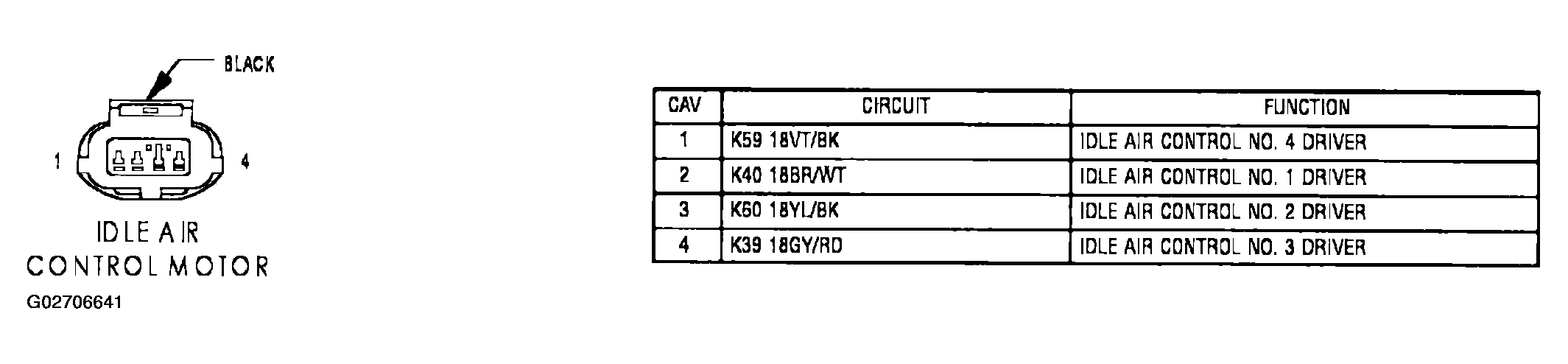

Fig 1: Idle Air Control Motor Connector End View

G02706641

Courtesy of CHRYSLER GROUP, LLC
