Hazard Switch/Combination Flasher Connector End View

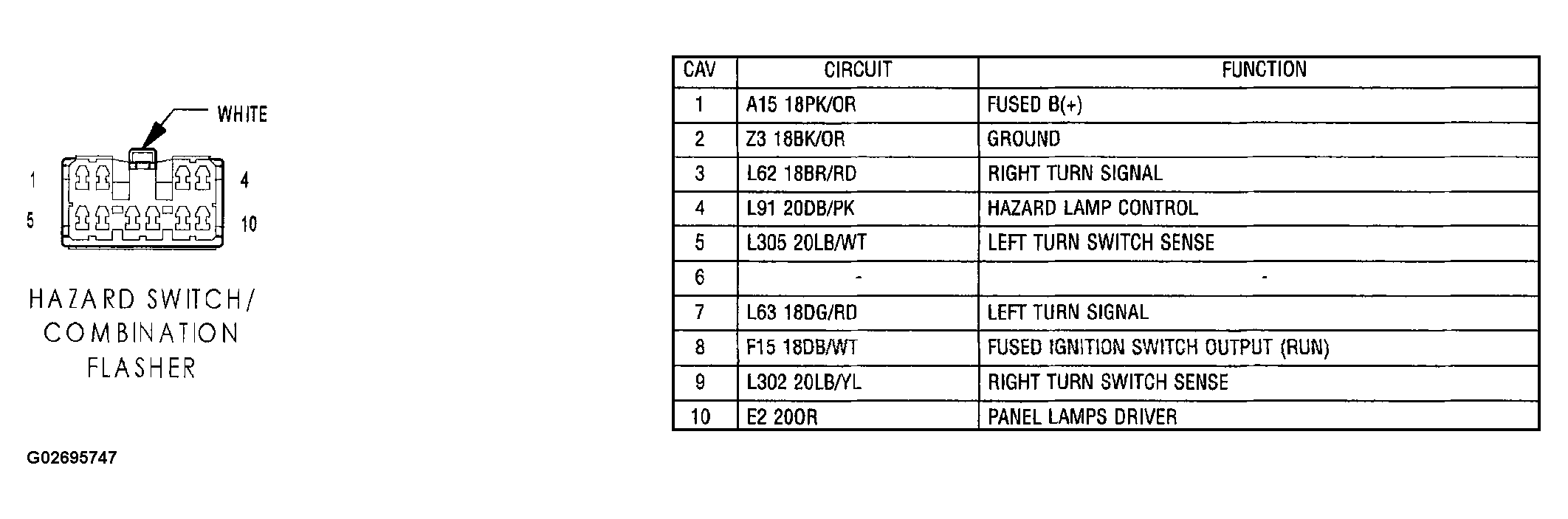

Fig 1: Hazard Switch/Combination Flasher Connector End View

G02695747

Courtesy of CHRYSLER GROUP, LLC
