Front Wiper Motor Connector End View

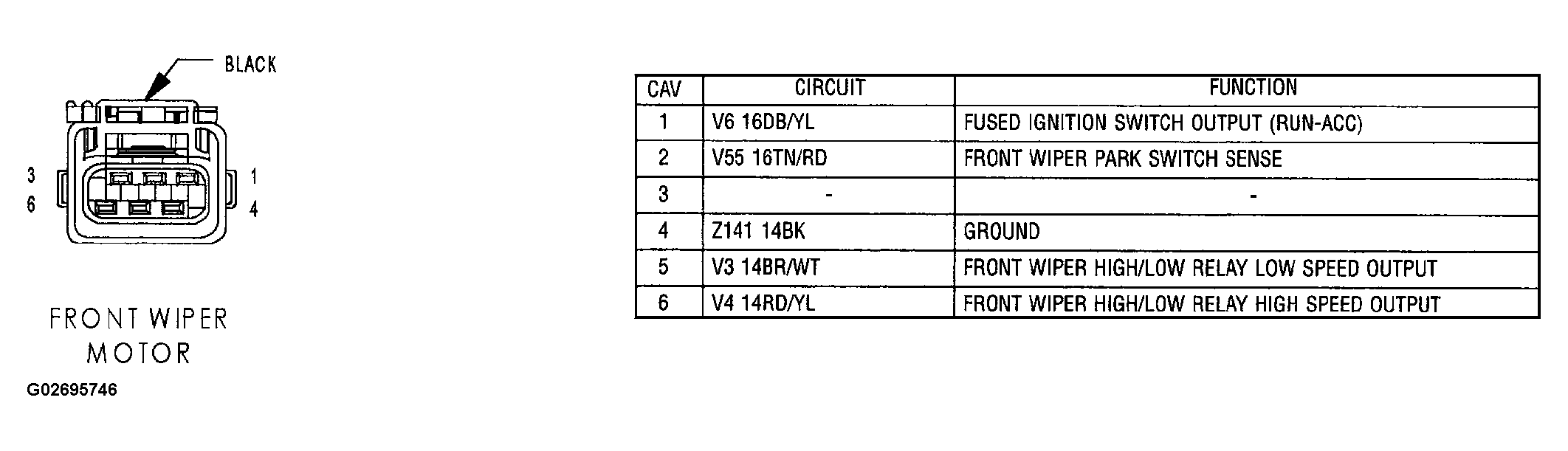

Fig 1: Front Wiper Motor Connector End View

G02695746

Courtesy of CHRYSLER GROUP, LLC
