A/C Heater Control C1 Connector End View

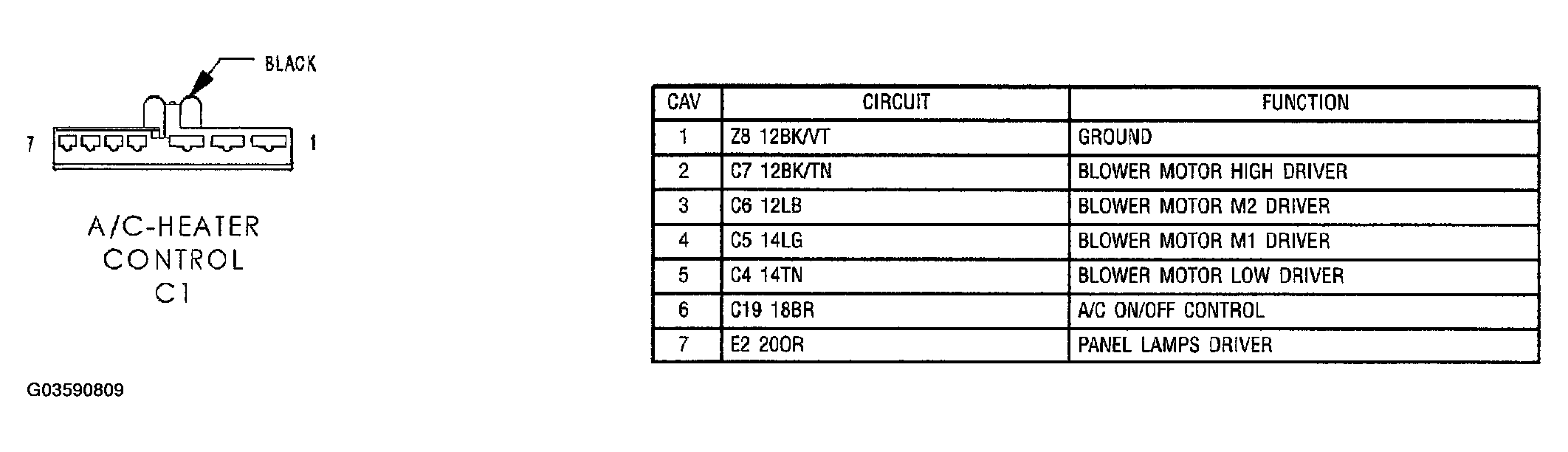

Fig 1: A/C Heater Control C1 Connector End View

G03590809

Courtesy of CHRYSLER GROUP, LLC
