Engine Block Heater: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Thoroughly clean core hole and heater seat.
  2. Insert heater assembly with element loop positioned upward  . See Fig 1.
  3. With heater seated, tighten center screw securely to assure a positive seal.
    CAUTION: To prevent damage, the power cord must be secured in it's retaining clips, and not positioned so it could contact linkages or exhaust manifold.
  4. Connect power cord to heater.
  5. Lower vehicle.
  6. Fill cooling system. Refer to REFILLING COOLING SYSTEM .

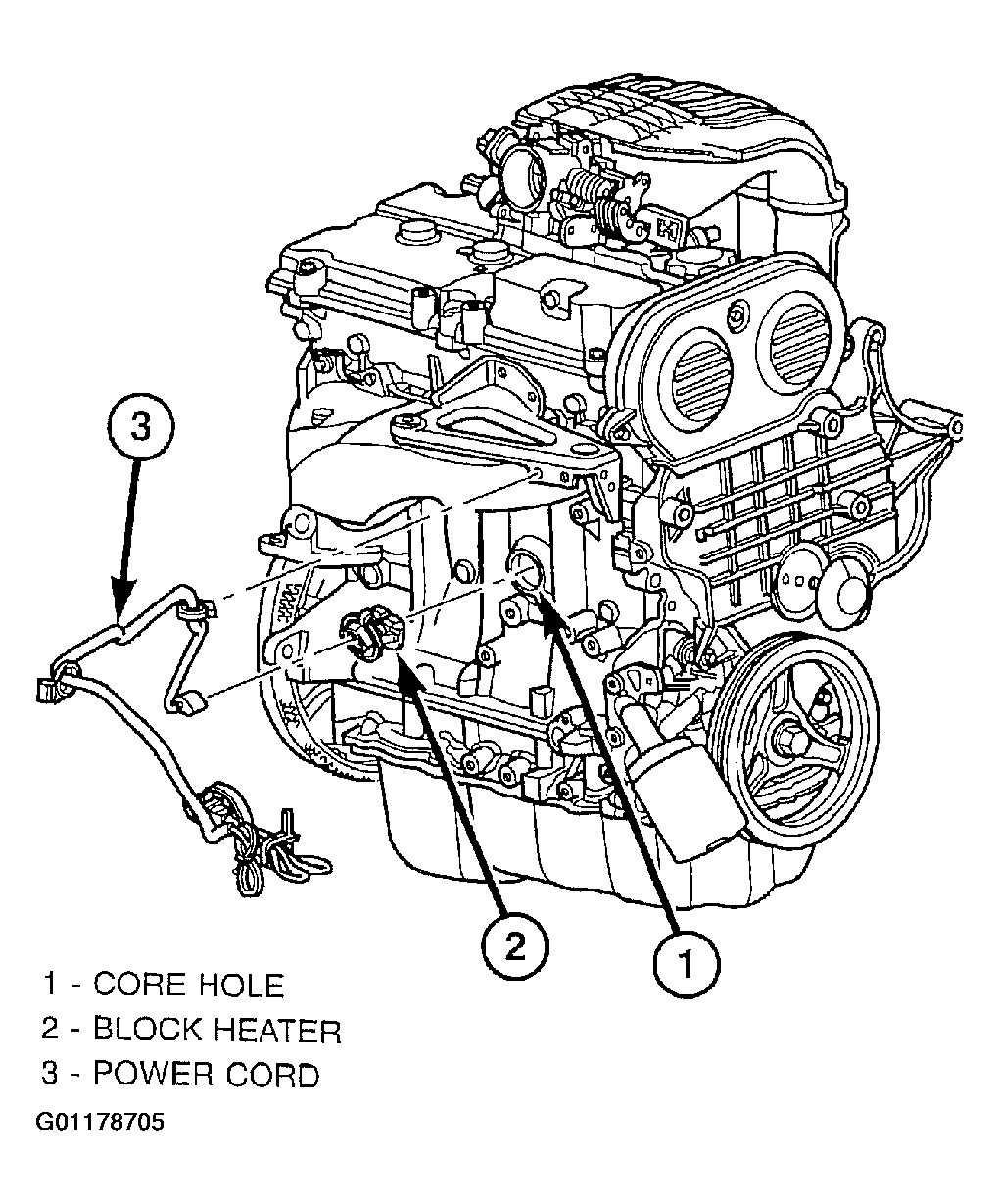

    Fig 1: Locating Engine Block Heater
    G01178705Courtesy of DAIMLERCHRYSLER CORP.
