Control Module: Installation

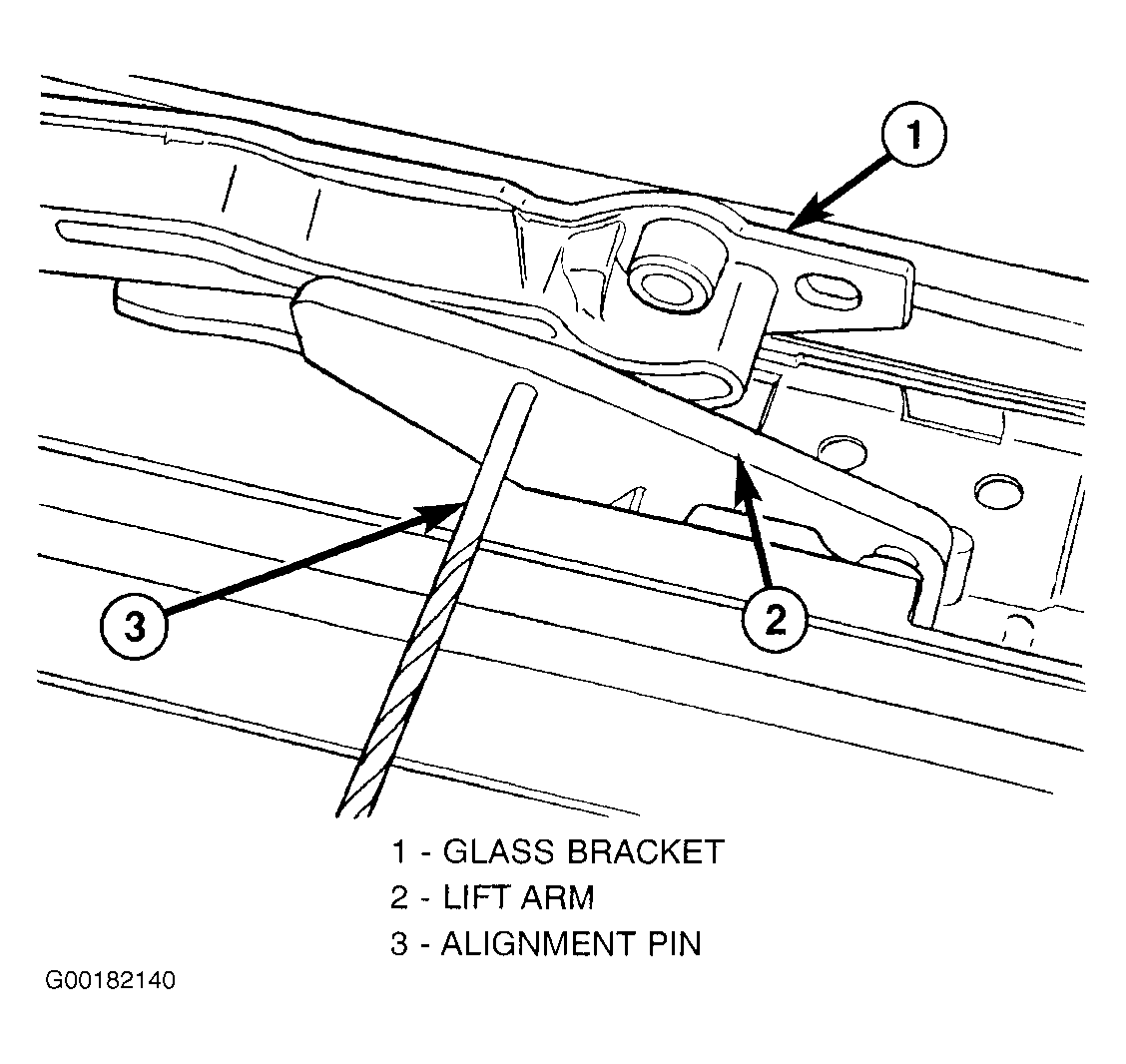

- Check glass assembly position. Adjusted to full closed position. Insert pin into holes in lift arm assembly to check position. See Fig 1
.
- Set new electronic module in position on top side of motor mounting bracket engaging drive cables with pinion gear in electronics module.
- Install one screw to attach electronics module to motor bracket.
- Install motor assembly to motor bracket and electronics module with 3 screws.

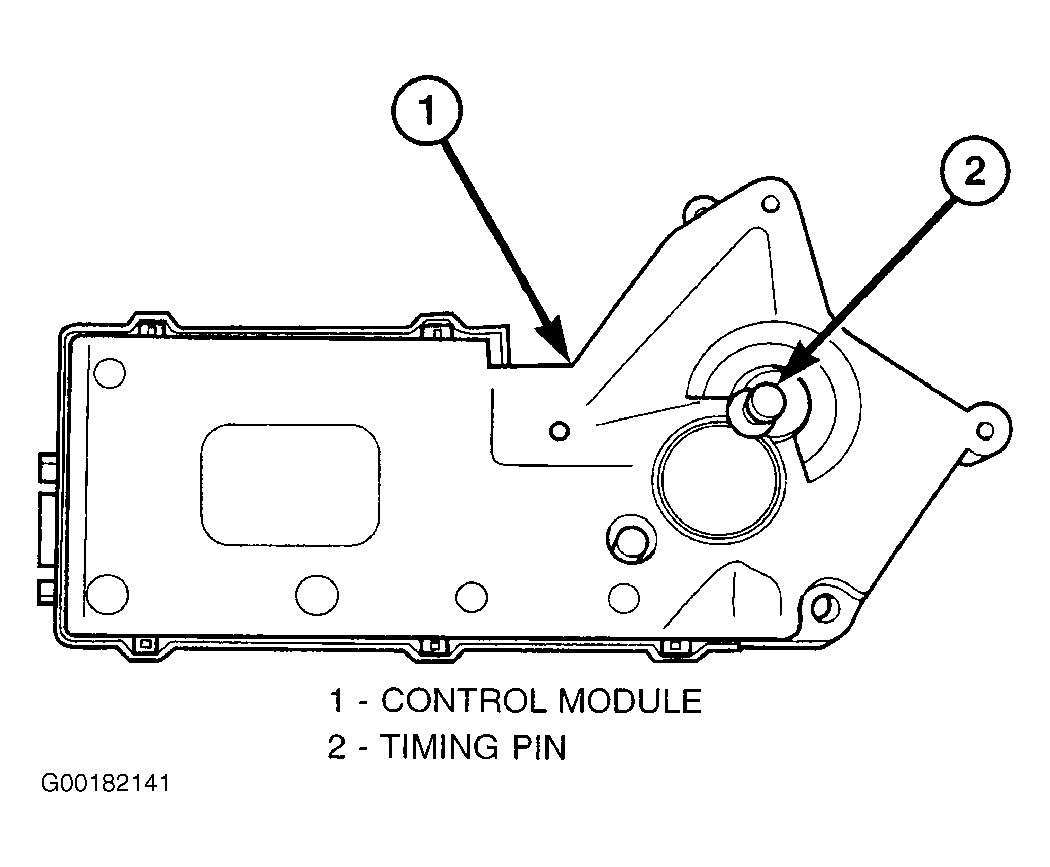

- Remove the new modules timing pin and discard. See Fig 2
.
- Connect electrical connector to module assembly wire harness. Secure any loose wires.
- Install module assembly.
- Test operation. See SUNROOF GLASS PANEL
in ADJUSTMENTS.
- Install opening trim lace.
