Transmission Control Module (4.7L) - Black 60 Way Connector End View

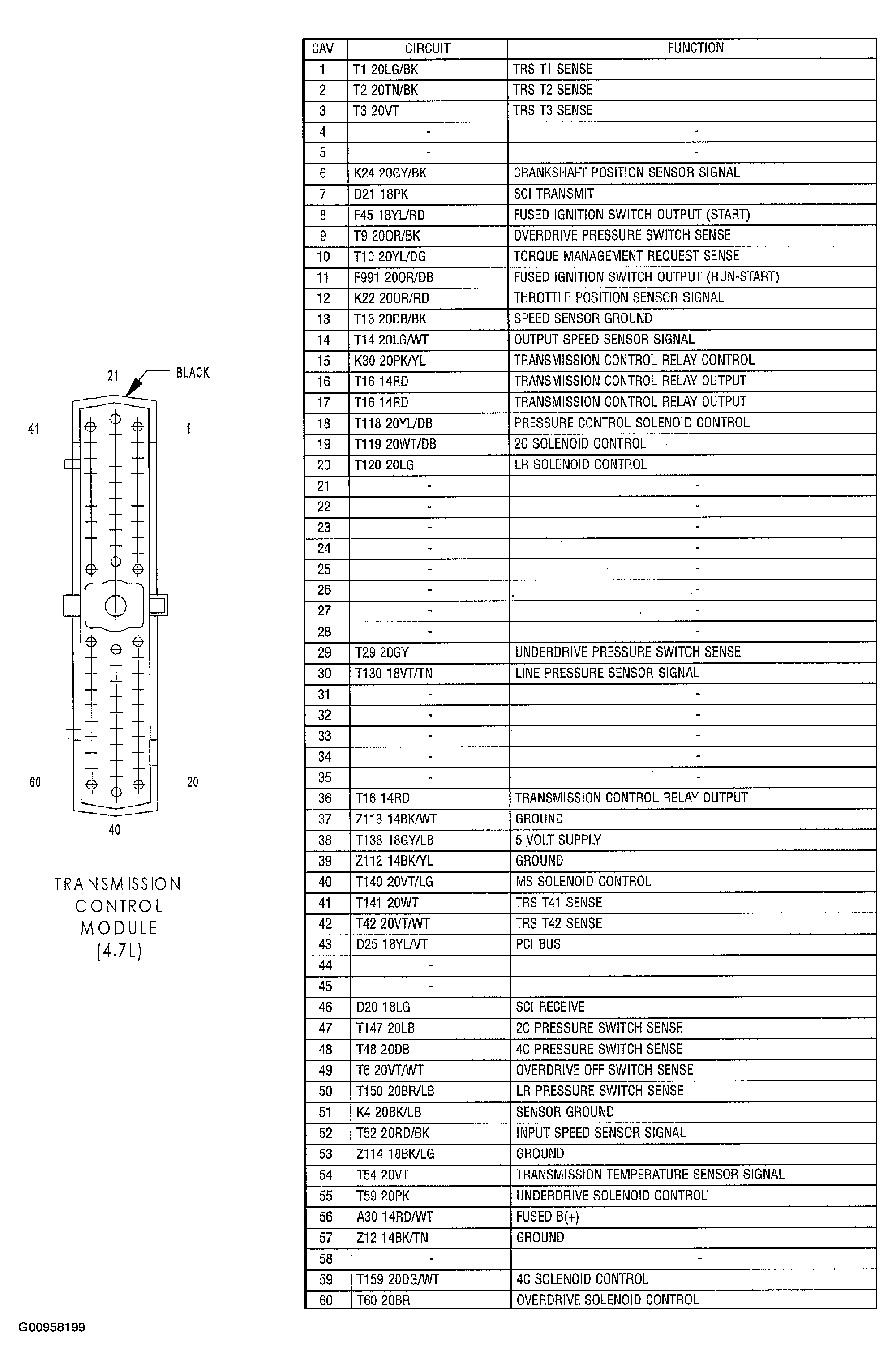

Fig 1: Transmission Control Module (4.7L) - Black 60 Way Connector End View

G00958199

Courtesy of CHRYSLER GROUP, LLC
