Driver Power Seat Switch (Base) Connector End View

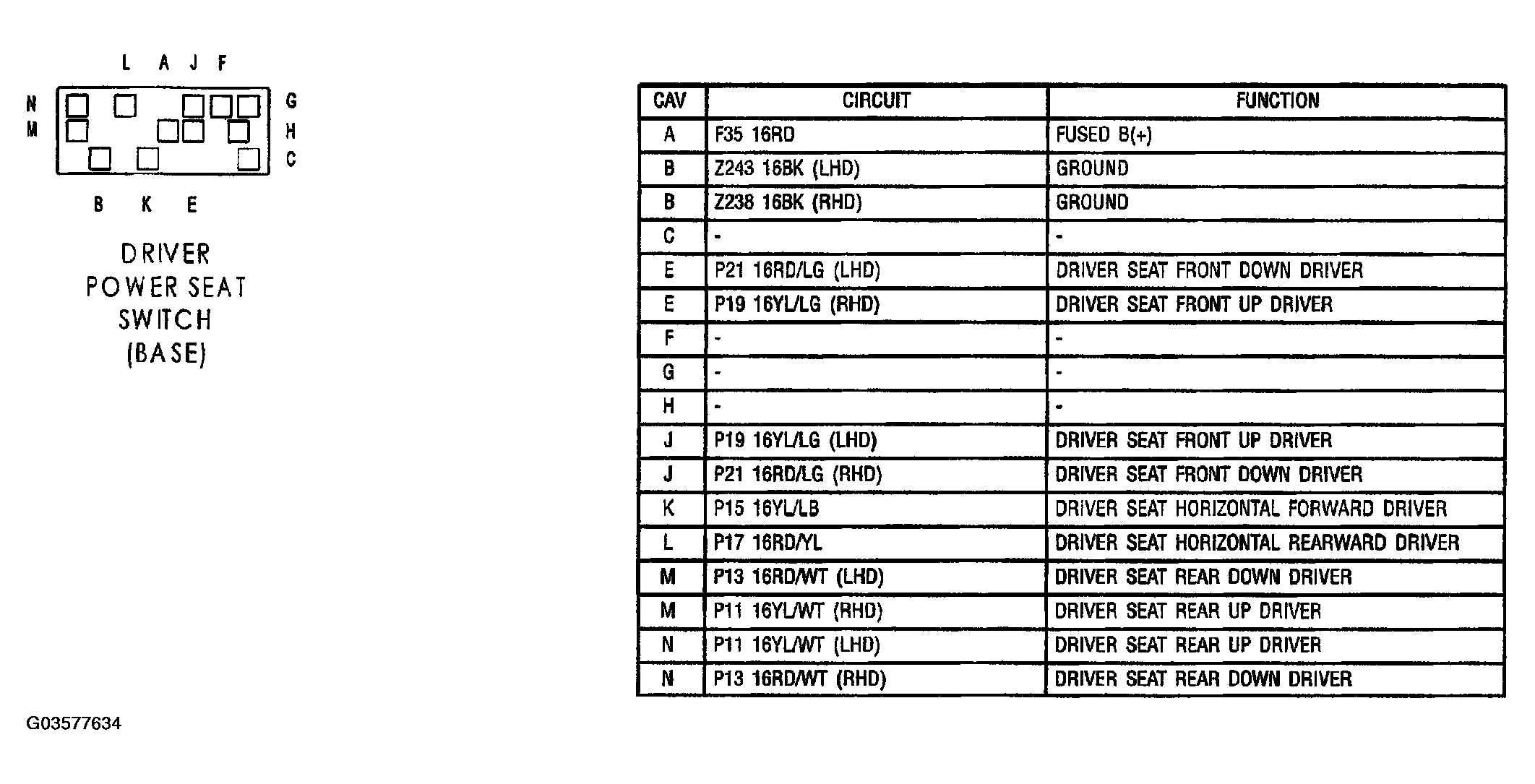

Fig 1: Driver Power Seat Switch (Base) Connector End View

G03577634

Courtesy of CHRYSLER GROUP, LLC
