Driver Door Module C2 - Black 12 Way Connector End View
Driver Door Module C2 - Black 12 Way Connector End View

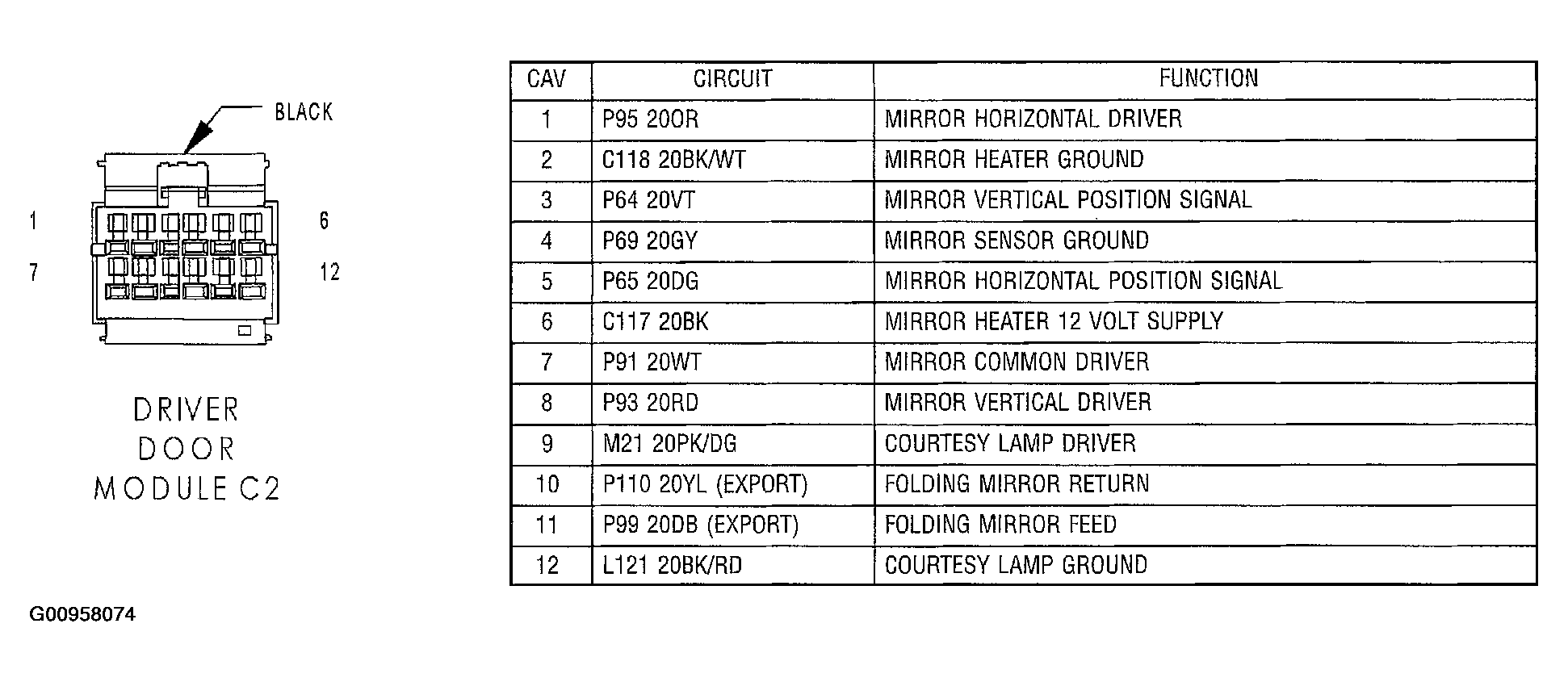

Fig 1: Driver Door Module C2 - Black 12 Way Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
