Body Control Module C2 - White 22 Way Connector End View

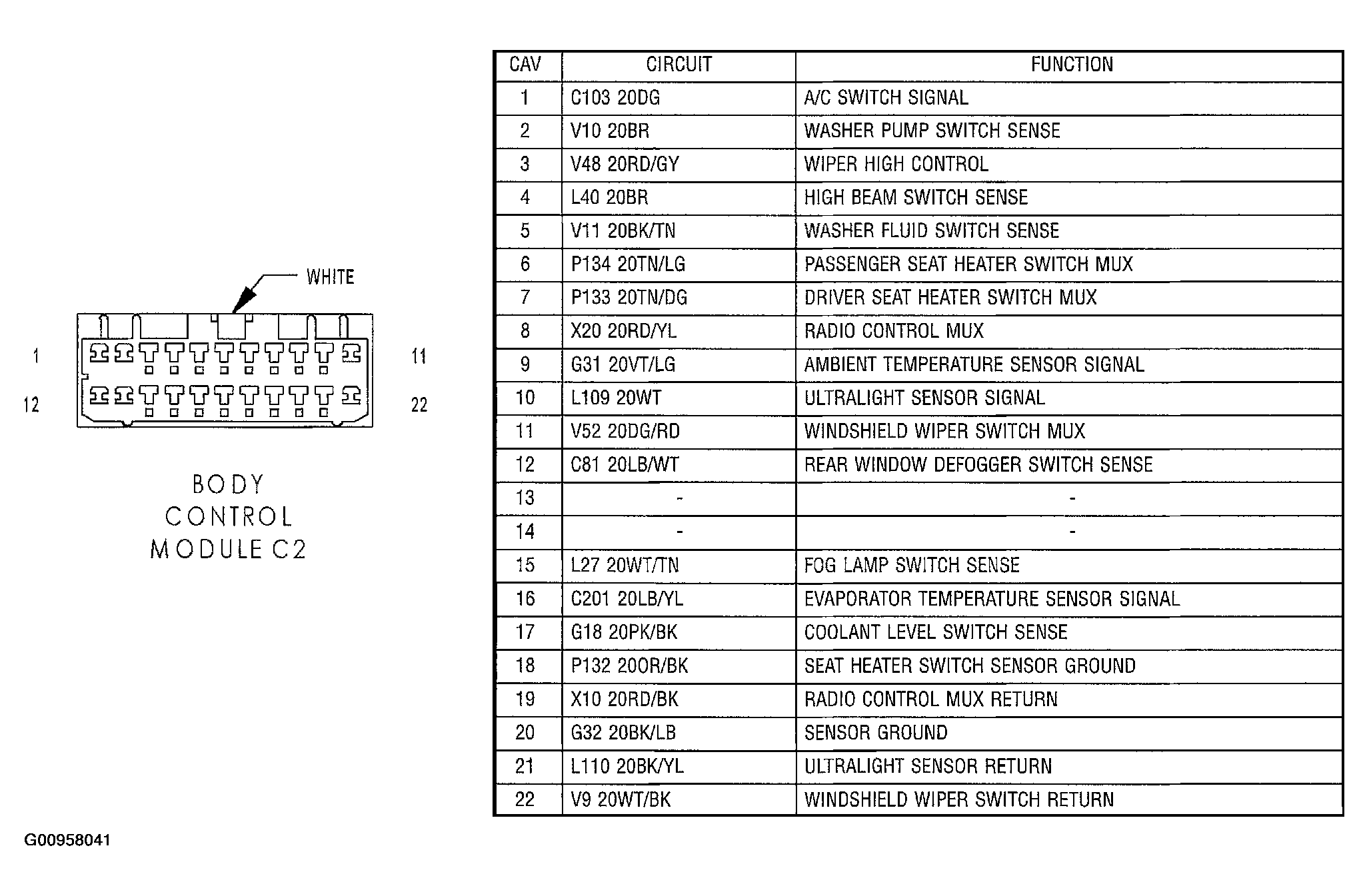

Fig 1: Body Control Module C2 - White 22 Way Connector End View

G00958041

Courtesy of CHRYSLER GROUP, LLC
