Blower Motor Resistor Block (Manual Temperature Control) Connector End View
Blower Motor Resistor Block (Manual Temperature Control) Connector End View

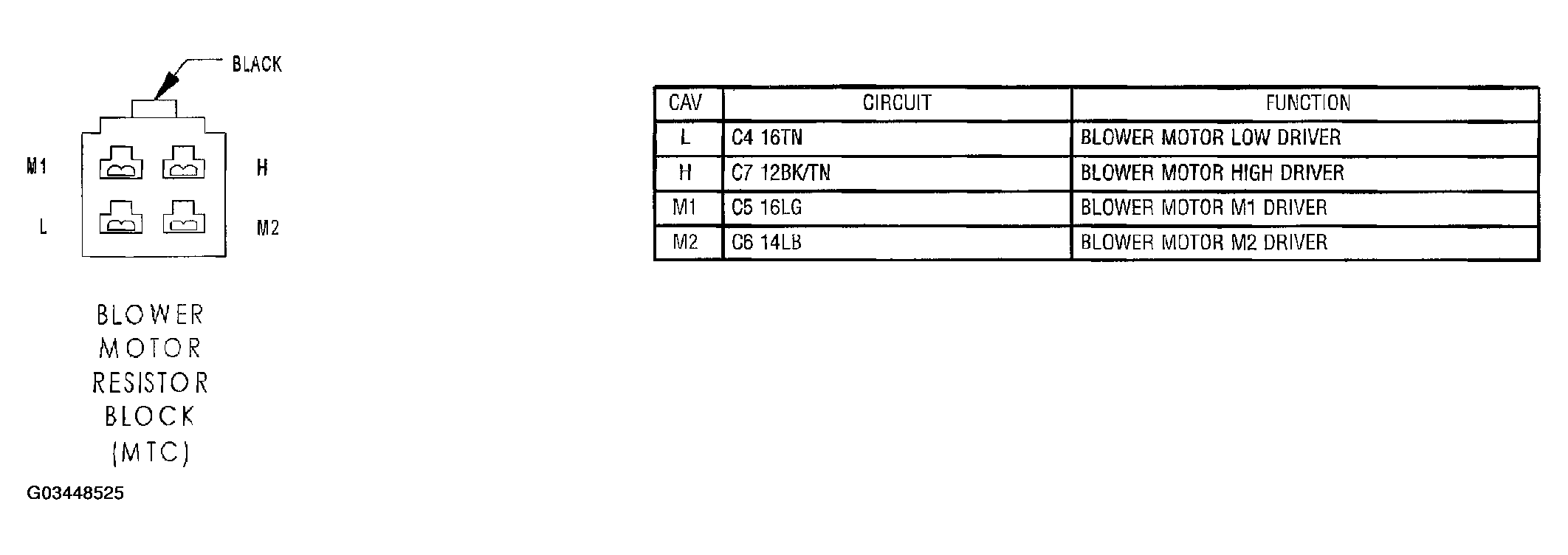

Fig 1: Blower Motor Resistor Block (Manual Temperature Control) Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
