Adjustable Pedals Module (Except Export) - Green 14 Way Connector End View

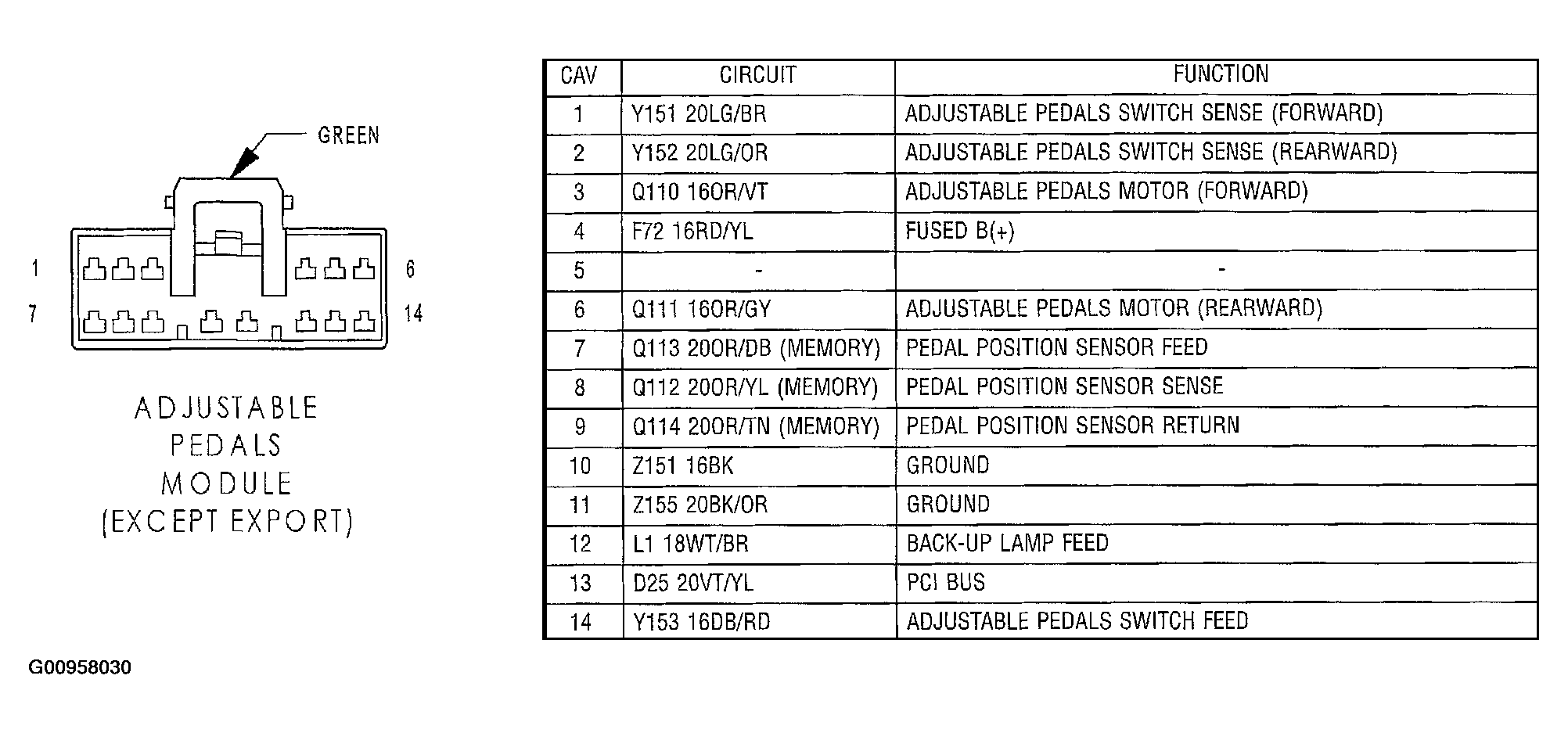

Fig 1: Adjustable Pedals Module (Except Export) - Green 14 Way Connector End View

G00958030

Courtesy of CHRYSLER GROUP, LLC
