Diagnosis And Testing - Antenna Module - Export

WARNING: This page is about a different car, the 2003 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

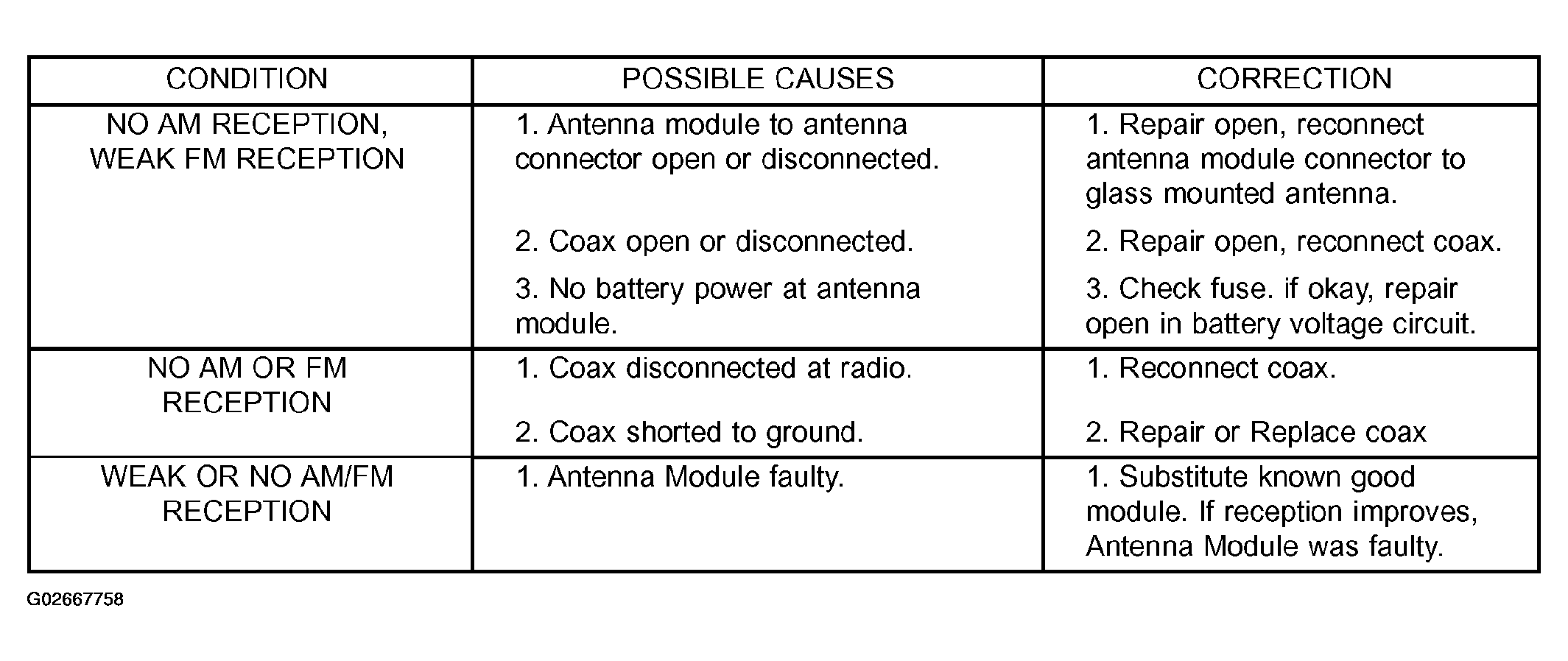

Fig 1: Antenna Module Diagnosis
G02667758Courtesy of DAIMLERCHRYSLER CORP.
