Manual Temperature Control (MTC) Connector End View (C2)

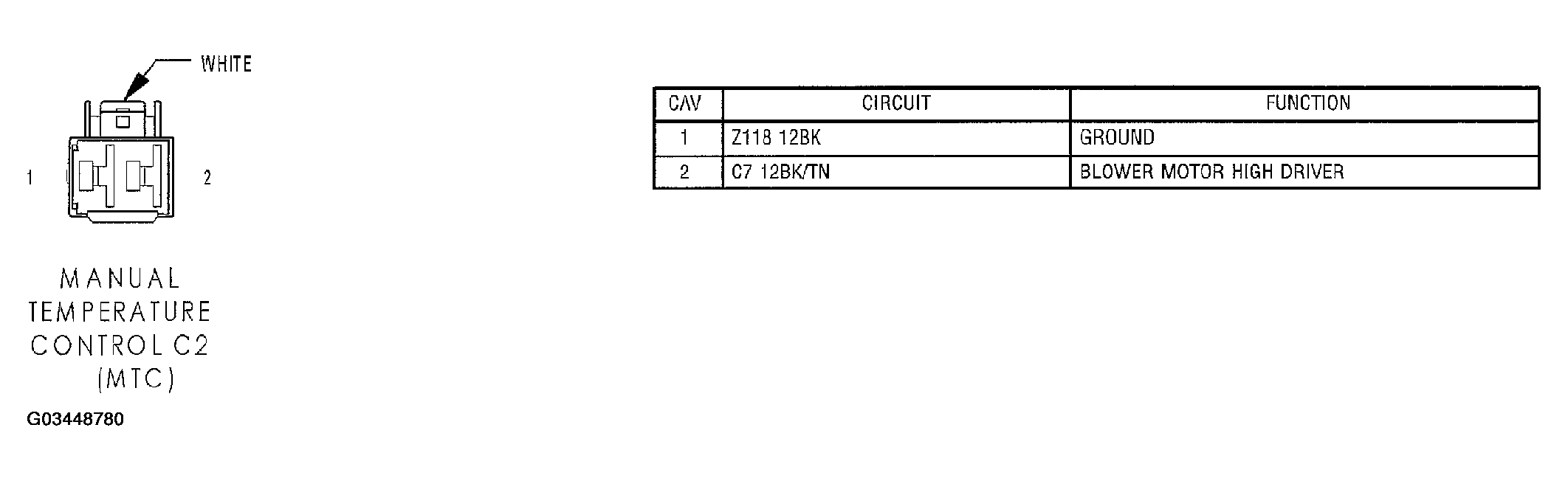

Fig 1: Manual Temperature Control (MTC) Connector End View (C2)

G03448780

Courtesy of CHRYSLER GROUP, LLC
